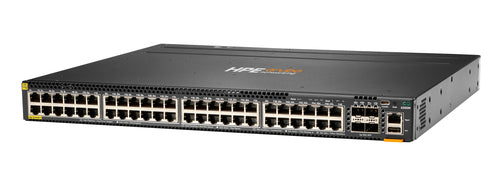

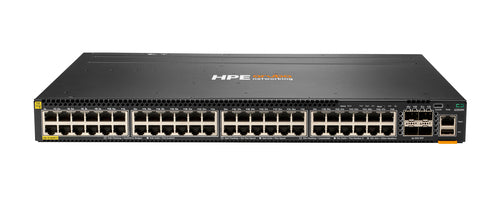

Network Switch HPE Aruba CX 6300M 48-Port 1GbE Class 4 PoE 4x SFP56 Rack Mount

Infomations

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Network Switch HPE Aruba CX 6300M 48-Port 1GbE Class 4 PoE 4x SFP56 Rack Mount

Name: Network Switch HPE Aruba CX 6300M 48-Port 1GbE Class 4 PoE 4x SFP56 Rack Mount
Brand: HPE
SKU: JL661A
Price: 9133.05 GBP
Availability: InStock

1 people are viewing this product

£9,133.05 GBP

£9,133.05 GBP ~~£10,594.34 GBP~~

Shipping calculated at checkout.

Enterprise networks that require robust PoE capabilities will benefit from the HPE Aruba CX 6300M Switch, specifically built for modern infrastructure needs. With 48 Gigabit Ethernet ports, it supports seamless device connectivity and power delivery right through the network cable, eliminating the need for separate power supplies.

This managed Layer 3 switch enhances network control and performance, featuring a compact 1U form factor ideal for rack-mounted configurations. Its high-speed 4-port SFP56 connectivity is designed for data-intensive applications, ensuring smooth performance and reduced latency.

Ports: 48-port Gigabit Ethernet (10/100/1000)
Power over Ethernet: Class 4 PoE support
High-speed uplink: 4-port SFP56
Type: Managed Layer 3 switch
Form factor: Compact 1U rack mount design

Ideal for IT teams deploying reliable networking solutions in data centers and enterprise environments that demand high-performance and efficient infrastructure management.

Vendor: HPE

Type: Network Switches

Available stock: 6
🚨 Hot Demand! Only 6 left — grab yours before it's gone! 💥

Free Shipping over $2000

Estimated delivery: May 30 - Jun 03

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Optical fiber
Transmission distance (max)	10 km
Data transmission
Switching capacity	496 Gbit/s
Throughput	369 Mpps
MAC address table	29490 entries
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Jumbo frames support	Yes
Packet buffer memory	8 MB
Security
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP, BGP4, IP, OSPF
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
Performance
Physical stacking (units)	10
Built-in processor	Yes
Processor model	ARM Cortex-A72
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Power
Power supply included	No
AC input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	1440 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	44 mm
Depth	442 mm
Height	385 mm
Weight	5.16 kg
Logistics data
Harmonized System (HS) code	85176990
