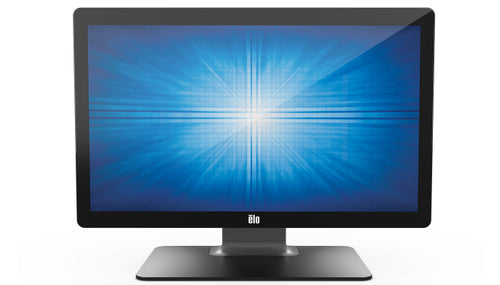

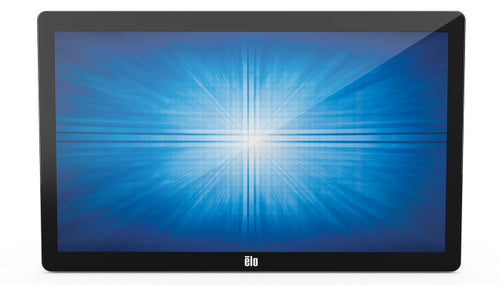

Elo Touch Solutions 2702L
Elo Touch Solutions 2702LAvailable stock: 17
-
Estimated delivery: Sep 28 - Oct 02
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Panel type | TFT |
| Display diagonal | 68.6 cm (27") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 300 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Product colour | Black, Silver |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 28 W |
| Power consumption (standby) | 0.45 W |
| Power consumption (off) | 0.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 647.6 mm |
| Depth (with stand) | 233 mm |
| Height (with stand) | 450.9 mm |
| Weight (with stand) | 10.5 kg |
| Packaging data | |
| Package width | 764 mm |
| Package depth | 322 mm |
| Package height | 560 mm |
| Package weight | 14.3 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Wall mountable | Yes |
| Technical details | |
| Full HD | Yes |
| Other features | |
| Micro-USB ports quantity | 4 |
| Maximum refresh rate | 60 Hz |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Aspect ratio | 16:9 |
| Built-in microphone | No |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Headphone outputs | 1 |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Weight (without stand) | 7.24 kg |
| Dimensions (W x D x H) with stand | 647.6 x 233 x 450.9 mm |
| Built-in camera | No |
