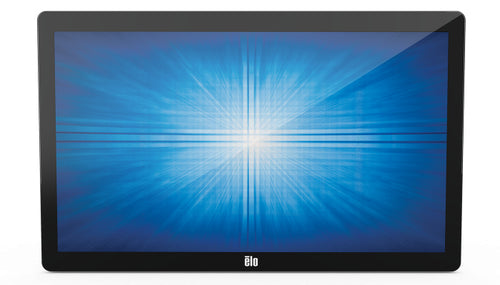

Elo Touch Solutions 2702L
Elo Touch Solutions 2702LAvailable stock: 96
-
Estimated delivery: Sep 29 - Oct 03
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Panel type | TFT |
| Display diagonal | 68.6 cm (27") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 300 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 28 W |
| Power consumption (standby) | 0.45 W |
| Power consumption (off) | 0.38 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Packaging data | |
| Package width | 770 mm |
| Package depth | 187 mm |
| Package height | 520 mm |
| Package weight | 9.58 kg |
| Packaging content | |
| Stand included | No |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3.048 m |
| Non-operating altitude | 0 - 12.192 m |
| Certificates | |
| Certification | Canada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Wall mountable | Yes |
| Other features | |
| Micro-USB ports quantity | 4 |
| Maximum refresh rate | 60 Hz |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Headphone outputs | 1 |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Height (without stand) | 394.1 mm |
| Weight (without stand) | 7.24 kg |
| Depth (without stand) | 44.9 mm |
| Power supply type | AC/DC |
| Built-in camera | No |
