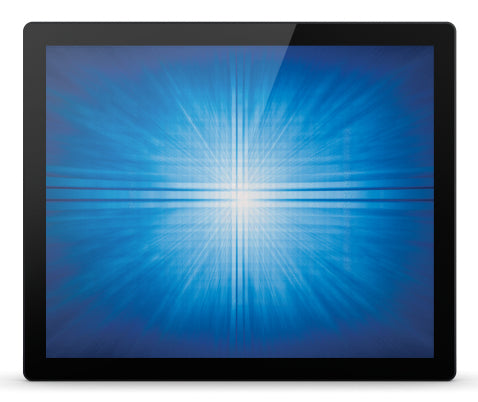

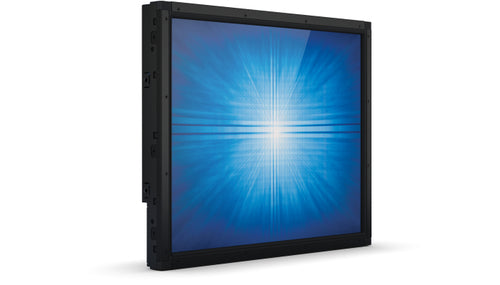

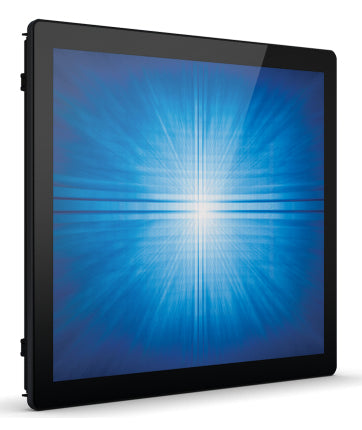

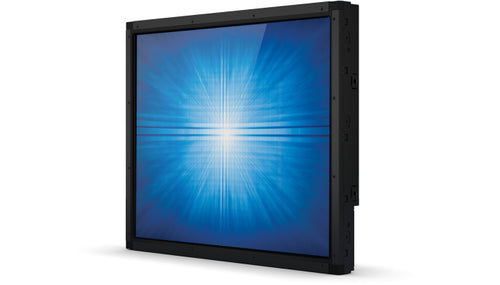

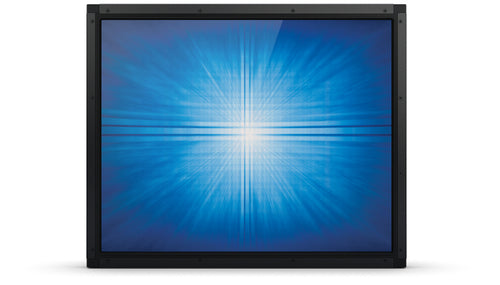

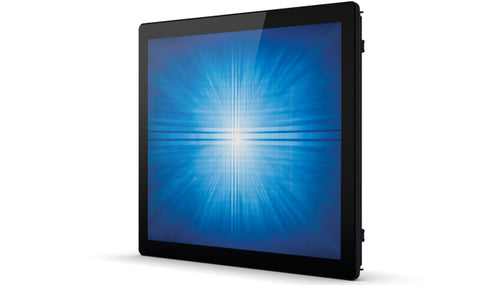

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- LED backlighting allows for state-of-the-art slim design while reducing power consumption
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Elo Touch Solutions 1990L

Name: Elo Touch Solutions 1990L
Brand: Elo Touch Solutions
SKU: E330817
Price: 392.84 GBP
Availability: InStock

1 people are viewing this product

£392.84 GBP

£392.84 GBP ~~£491.05 GBP~~

Shipping calculated at checkout.

Elo Touch Solutions 1990L, 48.3 cm (19\"), LED, 1280 x 1024 pixels

Vendor: Elo Touch Solutions

Type: Signage Displays

Available stock: 21

★

Free Shipping over £2000

Estimated delivery: Jul 11 - Jul 15

Informations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Display
Display diagonal	48.3 cm (19")
Display technology	LED
Display resolution	1280 x 1024 pixels
Display brightness	225 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA)
Ports & interfaces
DisplayPorts quantity	1
Design
Product colour	Black
Screen shape	Flat
VESA mounting	Yes

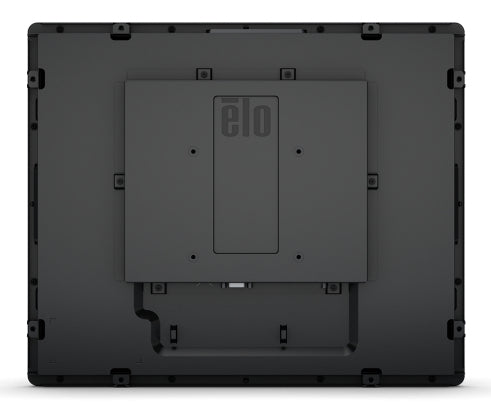

Panel mounting interface	100 x 100 mm
Performance
Number of OSD languages	8
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF)	50000 h
Power
Power consumption (typical)	22 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.5 W
AC input voltage	230 V
AC input frequency	50 Hz
Packaging data
Package width	526 mm
Package depth	450 mm
Package height	190 mm
Package weight	7 kg
Packaging content
Cables included	HDMI, USB, VGA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3.048 m
Logistics data
Harmonized System (HS) code	85285210
Features
Wall mountable	Yes
Other features
Aspect ratio	5:4
Built-in microphone	No
Display viewable area (HxV)	376.32 x 301.06 mm
Height (without stand)	342.7 mm
Weight (without stand)	4.6 kg
Depth (without stand)	50 mm
Power supply type	DC
Built-in camera	No
