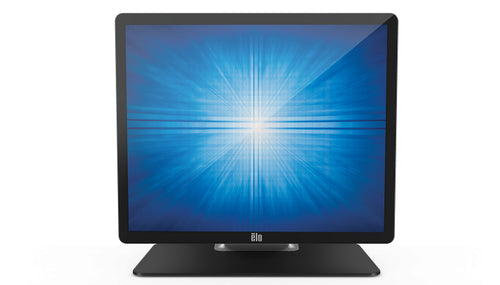

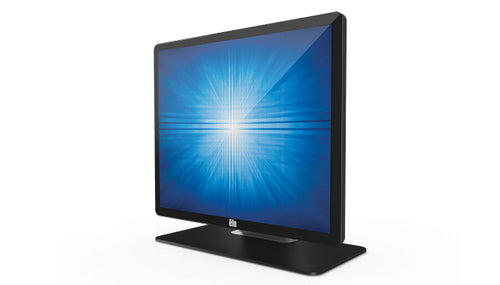

Elo Touch Solutions 1902L
Elo Touch Solutions 1902LAvailable stock: 35
-
Estimated delivery: Sep 30 - Oct 04
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| LED backlight | Yes |
| Display diagonal | 48.3 cm (19") |
| Display technology | LCD |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 235 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 5:4 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 429.6 mm |
| Depth (with stand) | 193.4 mm |
| Height (with stand) | 397.7 mm |
| Weight (with stand) | 6.3 kg |
| Packaging data | |
| Package width | 527 mm |
| Package depth | 260 mm |
| Package height | 482 mm |
| Package weight | 9.8 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Micro-USB ports quantity | 4 |
| Maximum refresh rate | 60 Hz |
| Quick start guide | Yes |
| Aspect ratio | 5:4 |
| Headphone outputs | 1 |
| Voltage tolerance | 5% |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Weight (without stand) | 4.3 kg |
| Dimensions (W x D x H) with stand | 429.6 x 193.4 x 397.7 mm |
| Power supply type | AC/DC |
| Built-in camera | No |
