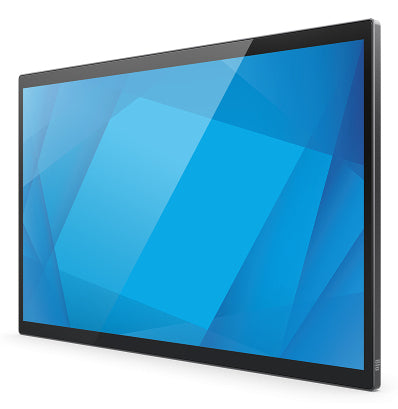

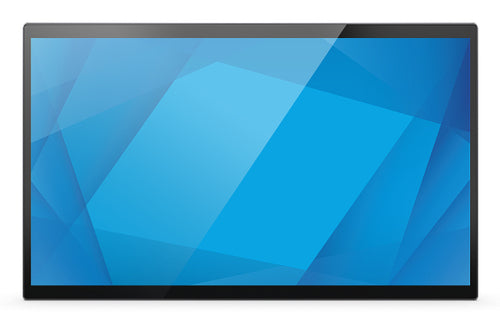

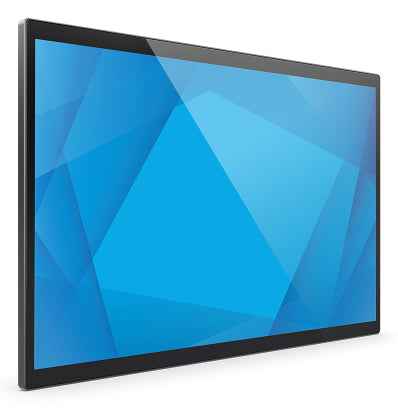

Elo Touch Solutions 1504LS
Elo Touch Solutions 1504LSAvailable stock: 10
-
Estimated delivery: Sep 28 - Oct 02
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Panel type | TFT-LCD |
| Display diagonal | 39.6 cm (15.6") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 350 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Multi-touch | Yes |
| Response time | 20 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.2 million colours |
| Active display area (W x H) | 344.16 x 193.59 mm |
| Number of displays | 1 |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB connector type | USB Type-C |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Anti-glare screen | Yes |
| Performance | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 8 W |
| Power consumption (sleep) | 0.8 W |
| Power consumption (off) | 0.15 W |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Display width | 359.7 mm |
| Display depth | 15 mm |
| Display height | 218.8 mm |
| Display weight | 1.11 kg |
| Packaging data | |
| Package width | 432 mm |
| Package depth | 93 mm |
| Package height | 295 mm |
| Package weight | 1.91 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Network | |
| Ethernet LAN | No |
| Other features | |
| Aspect ratio | 16:9 |
