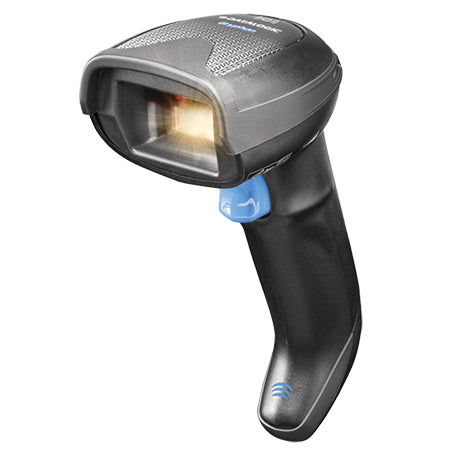

Datalogic Gryphon I GM4500
Datalogic Gryphon I GM4500
Available stock: 7
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | RF Wireless |
| Wireless range | 50 m |
| Operating frequency | 433 MHz |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Battery voltage | 12 V |
| Number of reads per charge | 80000 |
| Charging time | 4 h |
| Input voltage | 4.5 - 14 V |
| Weight & dimensions | |
| Width | 109 mm |
| Depth | 68 mm |
| Height | 166 mm |
| Weight | 235 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3250 mAh |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
