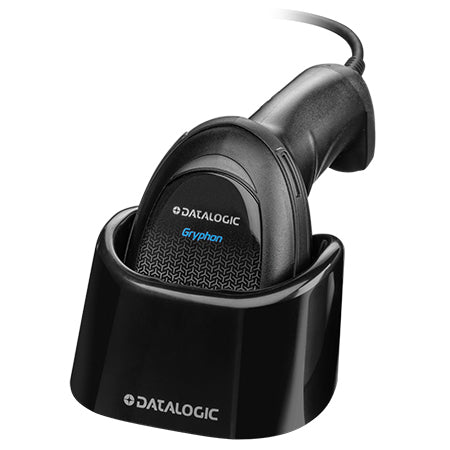

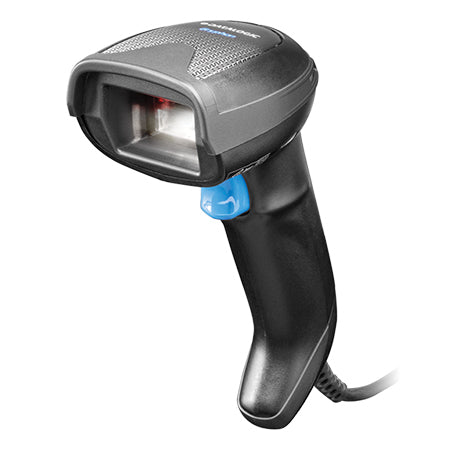

Datalogic Gryphon I GD4520
Datalogic Gryphon I GD4520
Available stock: 9
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 88.9 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Protection features | Shock resistant |
| Image formats supported | TIFF, BMP, JPEG |
| Product colour | Black |
| Certification | IEC 60825 Class 2 |
| Power | |
| Power source type | DC |
| Input voltage | 5 V |
| Power consumption | 300 mA |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
| Weight | 161 g |
| Packaging data | |
| Cables included | USB |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
