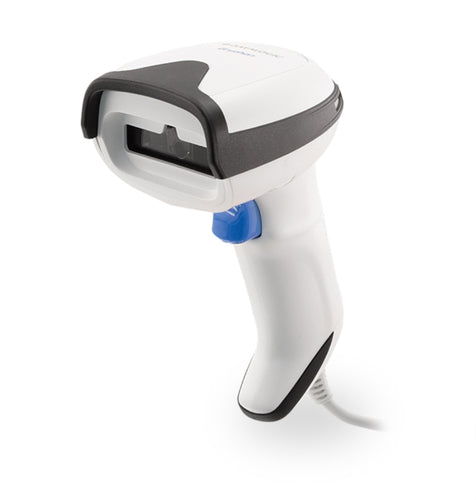

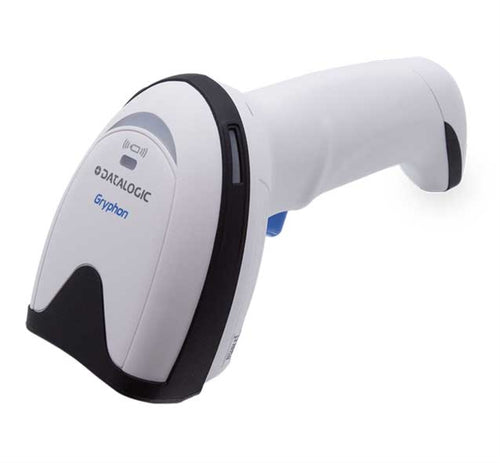

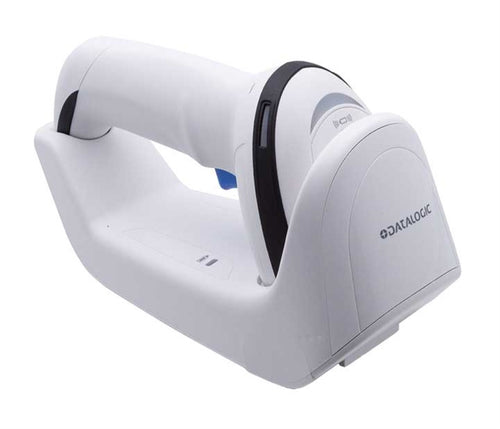

Datalogic Gryphon GM4200
Datalogic Gryphon GM4200
Available stock: 1
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Sensor type | CCD |
| Linear (1D) barcodes supported | GS1 DataBar |
| Scanner resolution | 0.077 mm |
| Read rate (max) | 400 reads/s |
| Light levels (direct sunlight) | 0 - 130000 lx |
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | RF Wireless |
| Wireless range | 50 m |
| Operating frequency | 433 MHz |
| Performance | |
| International Protection (IP) code | IP52 |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Product colour | White |
| Power | |
| Power source type | Battery |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Battery voltage | 3.6 V |
| Number of reads per charge | 80000 |
| Charging time | 4 h |
| Input voltage | 4.5 - 14 V |
| Weight & dimensions | |
| Width | 166 mm |
| Depth | 68 mm |
| Height | 109 mm |
| Weight | 235 g |
| Packaging data | |
| Cables included | USB |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2550 mAh |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
