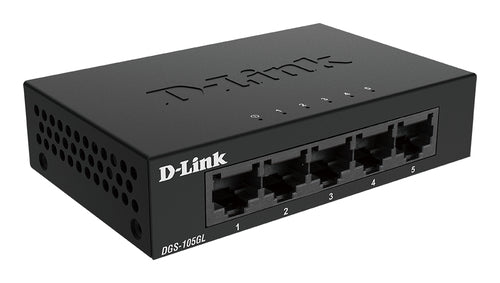

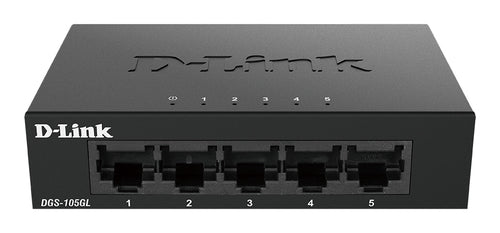

D-Link DGS-105GL
D-Link DGS-105GL
1 people are viewing this product
Regular price
£13.44 GBP
Sale price
£13.44 GBP
Regular price
£15.19 GBP
Shipping calculated at checkout.
D-Link 5-Port Gigabit Ethernet Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Desktop
Available stock: 1
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
| Stackable | Yes |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Performance | |
| Mean time between failures (MTBF) | 1455562 h |
| Power | |
| Power source | DC |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3.55 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 12.11 BTU/h |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 64 mm |
| Height | 24 mm |
| Weight | 160 g |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | CE; FCC; RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
