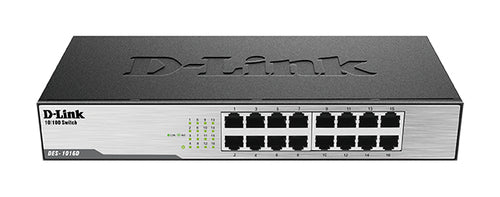

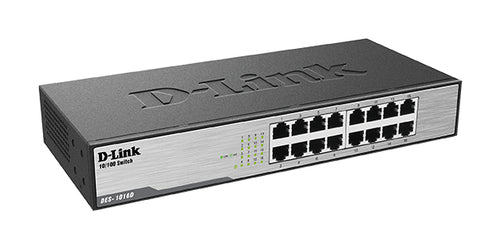

D-Link DES-1016D
D-Link DES-1016D
1 people are viewing this product
Regular price
£35.49 GBP
Sale price
£35.49 GBP
Regular price
£48.62 GBP
Shipping calculated at checkout.
D-Link 16-Port Fast Ethernet Unmanaged Desktop Switch, Unmanaged, Fast Ethernet (10/100), Full duplex
Available stock: 3
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| Data transmission | |
| Switching capacity | 3.2 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet forwarding rate (100 Mbps) | 148.8 pps |
| Packet forwarding rate (10 Mbps) | 14.88 pps |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Performance | |
| Internal memory | 2 MB |
| Mean time between failures (MTBF) | 492.096 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 7.1652 BTU/h |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.06 kg |
| Packaging data | |
| Package width | 282 mm |
| Package depth | 376 mm |
| Package height | 78 mm |
| Package weight | 1.8 kg |
| Technical details | |
| Shipping (inner) case height | 31.1 cm |
| Shipping (inner) case width | 39.2 cm |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case net weight | 9 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 253.9 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 137.9 cm |
| Pallet gross weight (sea) | 372.3 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 2 m |
| Shipping (inner) case gross weight | 9.87 kg |
| Certificates | |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
