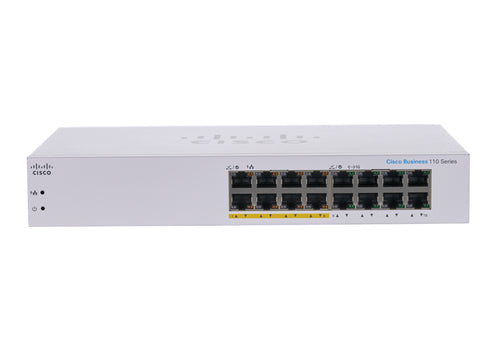

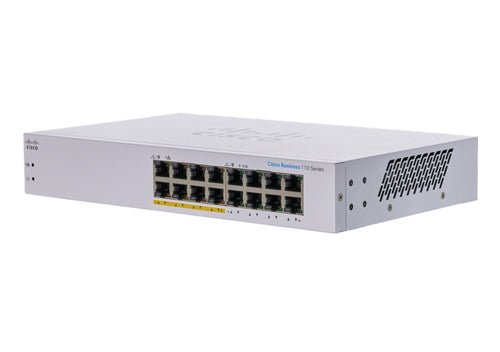

Unmanaged Switch Cisco CBS110 16-Port GE Partial PoE Rackmount - CBS110-16PP-UK
Unmanaged Switch Cisco CBS110 16-Port GE Partial PoE Rackmount - CBS110-16PP-UKOrganizations seeking reliable network connectivity without the complexities of management will find the Cisco CBS110 an excellent choice for their computing environments. This unmanaged switch is tailored for small to medium-sized businesses needing straightforward, effective networking solutions.

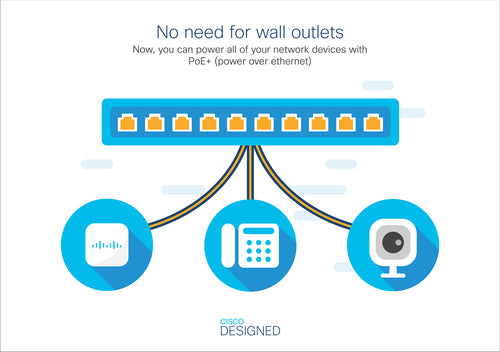

The CBS110 features 16 Gigabit Ethernet ports and supports Power over Ethernet (PoE) for powering devices like IP cameras and access points directly through the network cable. With its flexibility to be rack-mounted or used on a desktop, it adapts effortlessly to various deployment scenarios.
- Ports: 16 x Gigabit Ethernet (10/100/1000)
- Power over Ethernet: Partial PoE support
- Management: Unmanaged, Layer 2
- Mounting options: Rack-mountable or desktop
- Protection: Limited lifetime protection
Designed for small to medium-sized business networks that require straightforward and efficient connectivity solutions without the need for management complexity.
Available stock: 14
-
Estimated delivery: Oct 09 - Oct 13
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Combo SFP ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8192 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | Yes |
| Form factor | Desktop |
| Product colour | Grey |
| LED indicators | Yes |
| Market segment | Business |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 1971811 h |
| Power | |
| Power supply included | Yes |
| Power supply location | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Power saving mode (EEE) | Yes |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 64 W |
| Other features | |
| Diagnostics | Cable diagnostics |
| Packaging content | Switch, Power cord or adapter, Mounting hardware and Quick Start Guide |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 274.27 BTU/h |
| Weight & dimensions | |
| Width | 169.9 mm |
| Depth | 279.4 mm |
| Height | 44.5 mm |
| Weight | 1.32 kg |
| Packaging content | |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package width | 297.9 mm |
| Package depth | 454.9 mm |
| Package height | 82 mm |
| Package weight | 2.21 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
| Compliance certificates | CE |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
