Cisco CBS110
Cisco CBS110
1 people are viewing this product
Regular price
£27.91 GBP
Sale price
£27.91 GBP
Regular price
£34.89 GBP
Shipping calculated at checkout.

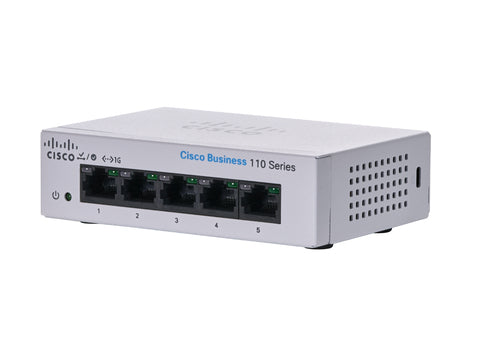

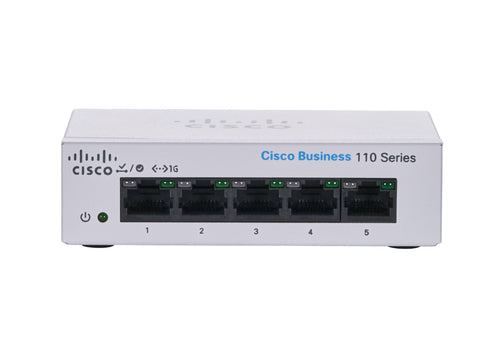

Cisco Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D), Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Desktop
Available stock: 2
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2048 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Grey |
| Market segment | Business |
| Performance | |
| Mean time between failures (MTBF) | 4243002 h |
| Power | |
| Power supply included | Yes |
| Power supply location | External |
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| DC input voltage | 12 V |
| Power saving mode (EEE) | Yes |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Diagnostics | Cable diagnostics |
| Packaging content | Switch, Power cord or adapter, Mounting hardware and Quick Start Guide |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 9.34 BTU/h |
| Weight & dimensions | |
| Width | 74.9 mm |
| Depth | 110 mm |
| Height | 30 mm |
| Weight | 240 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 144.8 mm |
| Package depth | 222 mm |
| Package height | 55.9 mm |
| Package weight | 440 g |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
