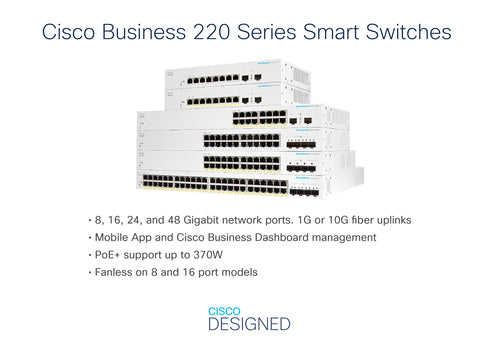

Cisco Business 220 Series Smart Switches
Cisco Business 220 Series Smart Switches
1 people are viewing this product
Regular price
£529.41 GBP
Sale price
£529.41 GBP
Regular price
£645.88 GBP
Shipping calculated at checkout.

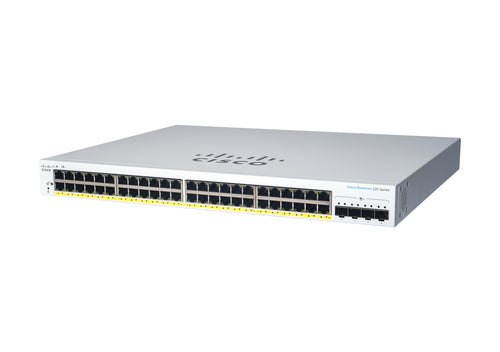

Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK), Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Available stock: 10
-
Estimated delivery: Jul 09 - Jul 13
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 74.38 Mpps |
| MAC address table | 8192 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| IGMP entries | 256 |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Activity, Link, Speed, System |
| Number of fans | 1 fan(s) |
| Market segment | Business |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (typical) | 52.6 W |
| Power consumption (max) | 478.2 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 382 W |
| Other features | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 5.29 kg |
| Packaging data | |
| Package width | 513.1 mm |
| Package depth | 574 mm |
| Package height | 109.2 mm |
| Package weight | 7.27 kg |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
