Axis P1388-LE
Axis P1388-LE
1 people are viewing this product
Regular price
£1,208.97 GBP
Sale price
£1,208.97 GBP
Regular price
£1,474.94 GBP
Shipping calculated at checkout.

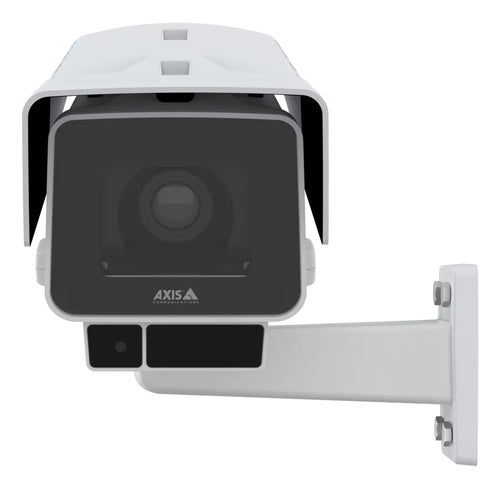

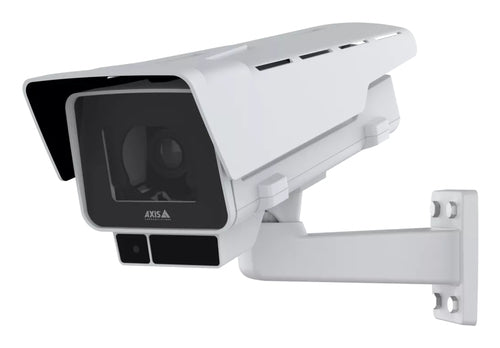

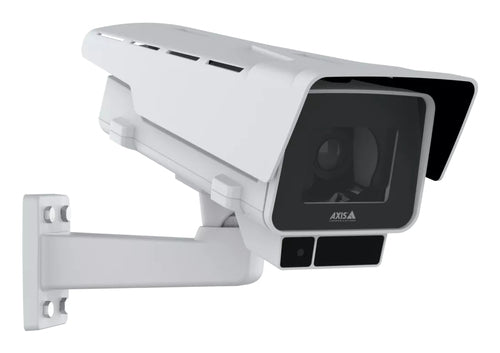

Axis P1388-LE, IP security camera, Indoor & outdoor, Wired, Digital PTZ, UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM, Wall
Available stock: 1
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| Protection features | Impact resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.13 lx |
| Angle of rotation | 270° |
| Vertical field of view (thermal module) | 64° |
| Horizontal field of view (thermal module) | 122 - 46° |
| Camera pixel size | 2 µm |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 3.9 - 10 mm |
| Auto focus | Yes |
| Detect distance (wide) | 78.7 m |
| Detect distance (tele) | 193.5 m |
| Observe distance (wide) | 31.2 m |
| Observe distance (tele) | 76.8 m |
| Recognize distance (wide) | 15.7 m |
| Recognize distance (tele) | 38.7 m |
| Identify distance (wide) | 7.9 m |
| Identify distance (tele) | 19.4 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| B/W night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 160 x 90, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 1-way |
| Audio system full duplex | Yes |
| Audio formats supported | AAC, G.711, OPUS, PCM |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS 2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/ 5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Video motion detection | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 9.1 W |
| Power consumption (max) | 25.5 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 2.46 kg |
| Weight (with stand) | 3.34 kg |
| Sustainability | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, CFR, PVC |
| Technical details | |
| Safety warning | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 |
