Axis M4228-LVE
Axis M4228-LVE
1 people are viewing this product
Regular price
£835.58 GBP
Sale price
£835.58 GBP
Regular price
£1,119.68 GBP
Shipping calculated at checkout.

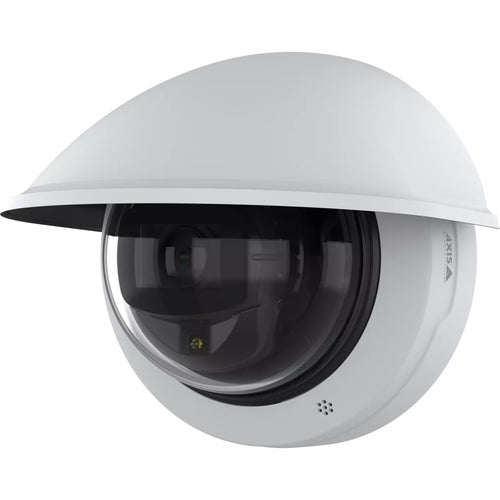

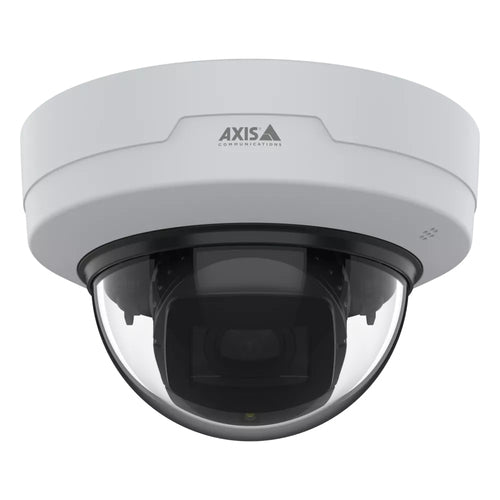

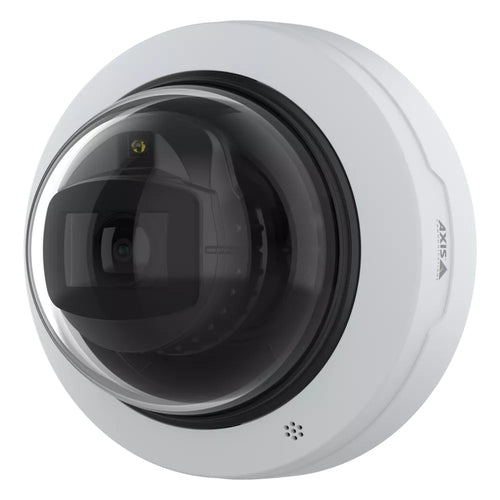

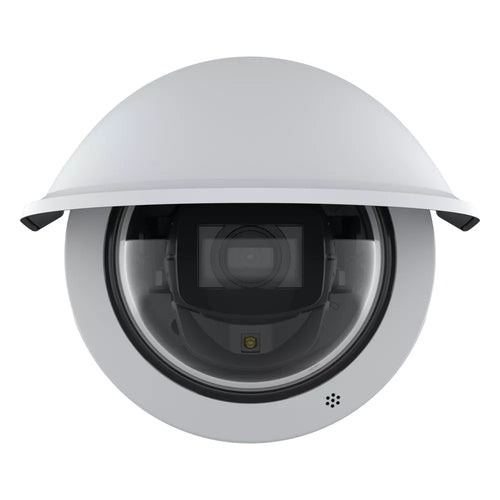

Axis M4228-LVE, IP security camera, Outdoor, Wired, Digital PTZ, Wall, Black, White
Available stock: 2
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Design | |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Tilt angle range | -10 - 65° |
| Pan range | -180 - 180° |
| Camera pixel size | 1.45 µm |
| Camera shutter speed | 1/16000 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 3.2 - 7.2 mm |
| Auto focus | Yes |
| Maximum aperture number | 2.7 |
| Minimum aperture number | 2.9 |
| Detect distance (wide) | 43.7 m |
| Detect distance (tele) | 101.8 m |
| Observe distance (wide) | 17.4 m |
| Observe distance (tele) | 40.4 m |
| Recognize distance (wide) | 8.8 m |
| Recognize distance (tele) | 20.4 m |
| Identify distance (wide) | 4.4 m |
| Identify distance (tele) | 10.2 m |
| Closest focusing distance | 1 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 2592 x 1944, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 2000 MB |
| Security | |
| Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Line crossing detection, Moving object |
| Human and vehicle targets classification | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 3.6 W |
| Power consumption (max) | 12.9 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 112 mm |
| Height | 126 mm |
| Weight | 540 g |
| Sustainability | |
| Compliance certificates | BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Other features | |
| Doesn't contain | Brominated Flame Retardant (BFR), CFR, PVC |
