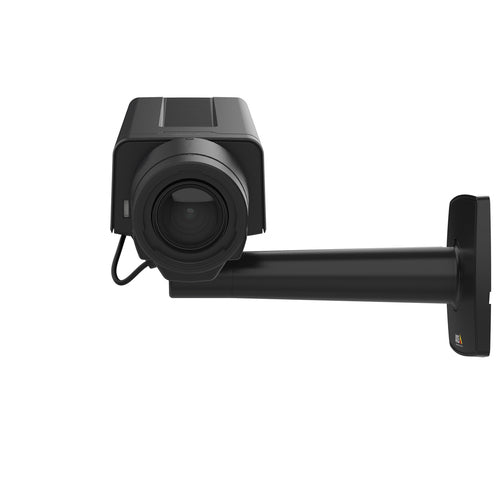

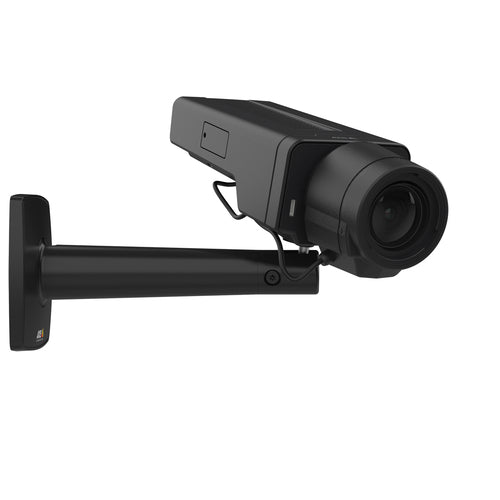

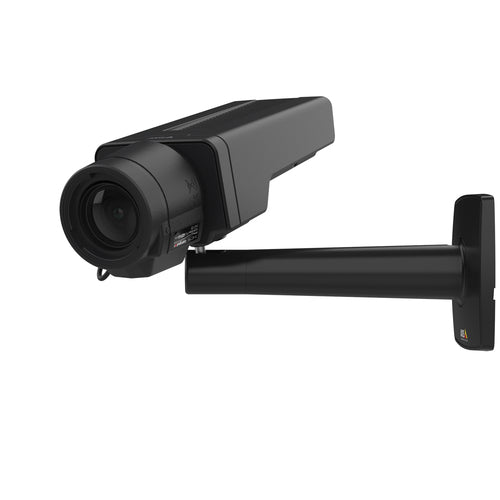

Indoor Security Camera Axis 02164-001 Wired Digital PTZ 120 dB HDR
Indoor Security Camera Axis 02164-001 Wired Digital PTZ 120 dB HDR
Businesses and individuals needing reliable indoor surveillance will find the Axis 02164-001 security camera a valuable addition for effective monitoring. This wired IP camera ensures stable performance and peace of mind, ideal for various indoor settings.
The digital PTZ functionality allows you to adjust the camera easily for optimal viewing angles. Supporting multiple languages, this user-friendly camera is perfect for diverse environments, ensuring versatility in operation.
- Type: Indoor IP Security Camera
- Connection: Wired for stable performance
- PTZ capabilities: Digital Pan-Tilt-Zoom
- Language support: Multiple languages including English, Spanish, and more
- Dynamic range: 120 dB for clear imaging in varying light conditions
Designed for users requiring dependable monitoring solutions across indoor environments, this camera fits well in security infrastructure for businesses and residential areas.
Available stock: 11
-
Estimated delivery: Jul 10 - Jul 14
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Dynamic range | 120 dB |
| Certification | EMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN/UL 62 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Housing material | Aluminium |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 120° |
| Lens viewing angle, vertical | 63° |
| Camera shutter speed | 1/47500 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 2.5x |
| Number of lenses | 1 |
| Focal length range | 3.9 - 10 mm |
| Auto focus | Yes |
| Maximum aperture number | 1.5 |
| Closest focusing distance | 0.5 m |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 160 x 90, 2688 x 1512 |
| Video intelligence analytic | Yes |
| Video streaming | Yes |
| Noise reduction | Yes |
| Gain control type | Auto |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Audio | |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio formats supported | ADPCM, LC-AAC, LPCM, PCM |
| Built-in microphone | Yes |
| Voice codecs | G.711, G.726, OPUS |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Wi-Fi | No |
| SIM card slot | No |
| Quality of Service (QoS) support | Yes |
| Live view | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8194 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-422 ports | 2 |
| RS-485 ports | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-TLS, FIPS 140-2, HTTPS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Mirror | Yes |
| Management features | |
| Remotely operated | Yes |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 7.7 W |
| Power consumption (Power over Ethernet (PoE)) | 5.1 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 214 mm |
| Height | 68 mm |
| Weight | 790 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | BFR, PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
