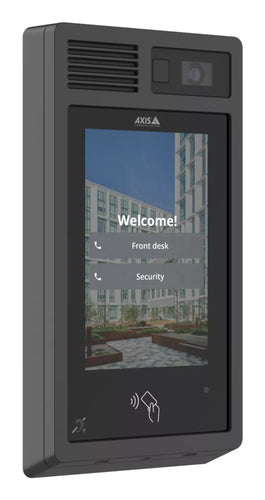

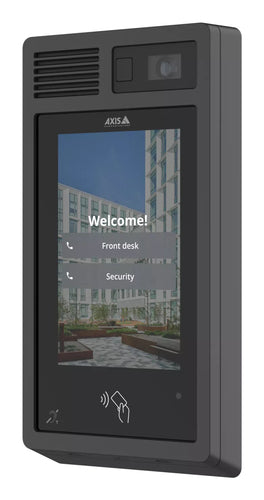

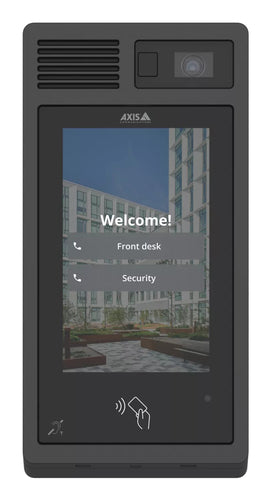

Axis I8307-VE video intercom system
Axis I8307-VE video intercom system
1 people are viewing this product
Regular price
£3,181.83 GBP
Sale price
£3,181.83 GBP
Regular price
£3,786.38 GBP
Shipping calculated at checkout.
Axis I8307-VE, 17.8 cm (7\"), 800 x 480 pixels, Capacitive, H.264, H.265, MPEG4, 3840 x 2160 pixels, Brightness, Contrast, Mirror, Saturation, Sharpness, White balance
Available stock: 1
-
Estimated delivery: Jul 09 - Jul 13
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Technical details | |
|---|---|
| Connectivity technology | Wired |
| Colour | Yes |
| Speakerphone | Yes |
| Number of displays supported | 1 |
| Maximum number of cameras supported | 1 |
| RFID reader | Yes |
| Streaming capability | Yes |
| Echo cancellation | Yes |
| Wall mountable | Yes |
| Built-in microphone | Yes |
| Display | |
| Display diagonal | 17.8 cm (7") |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Video formats supported | H.264, H.265, MPEG4 |
| Wide Dynamic Range (WDR) | Yes |
| Camera | |
| Maximum video resolution | 3840 x 2160 pixels |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness, White balance |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Maximum frame rate | 60 fps |
| Minimum illumination | 0.04 lx |
| PTZ control | Yes |
| Viewing angle, horizontal | 150° |
| Viewing angle, vertical | 112° |
| Motion sensor | Yes |
| Motion sensor technology | Passive infrared (PIR) sensor |
| Fixed focal length | 2.2 mm |
| Maximum aperture number | 1.8 |
| Audio | |
| Built-in speaker(s) | Yes |
| Voice codecs | G.711, G.726, PCM |
| Design | |
| Product colour | Black |
| On Screen Display (OSD) languages | Multi |
| International Protection (IP) code | IP66 |
| IK code | IK08 |
| Vandal-proof | Yes |
| Housing material | Aluminium |
| Control type | Touch |
| Placement supported | Vertical |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Outdoor unit | |
| Flash memory (transmitter) | 8 MB |
| Internal memory (transmitter) | 4000 MB |
| Alarm input channels (transmitter) | 4 |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Outdoor unit power type | DC/PoE |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 25 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 44 mm |
| Height | 290 mm |
| Weight | 2.07 kg |
| Packaging data | |
| Outdoor unit included | Yes |
| Packaging content | |
| Screws included | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
