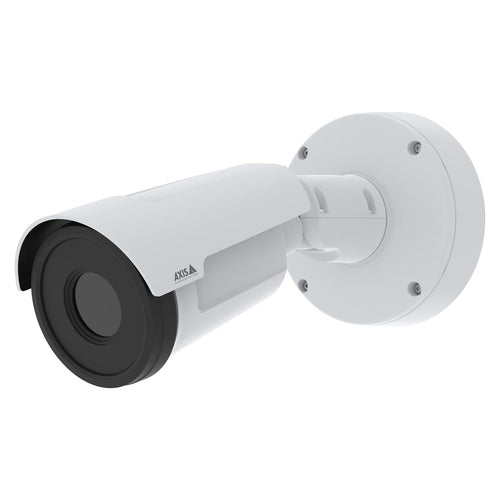

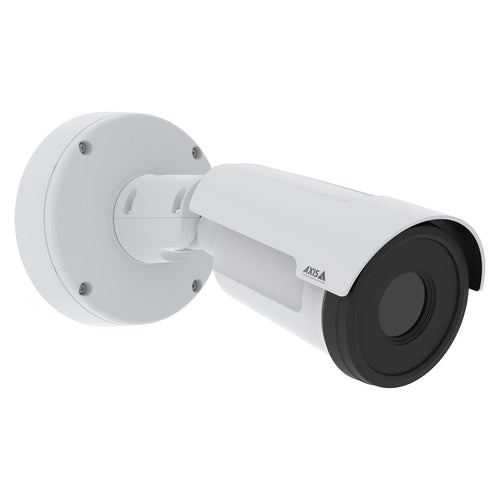

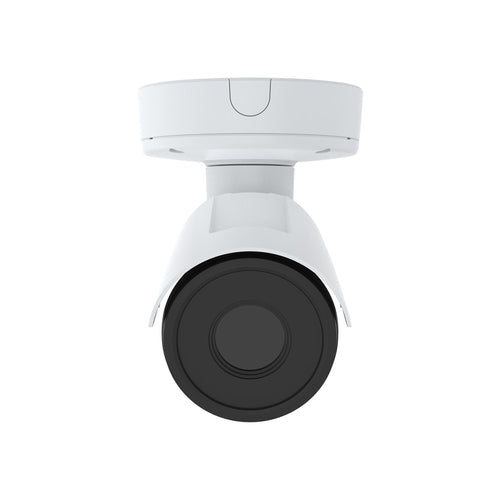

Axis 02174-001 security camera
Axis 02174-001 security camera
1 people are viewing this product
Regular price
£4,024.91 GBP
Sale price
£4,024.91 GBP
Regular price
£4,789.64 GBP
Shipping calculated at checkout.
Axis 02174-001, IP security camera, Outdoor, Wired, ARTPEC-8, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French,..., 40 mK
Available stock: 13
-
Estimated delivery: Jul 09 - Jul 13
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Thermal module | Yes |
| Processor model | ARTPEC-8 |
| Built-in processor | Yes |
| Number of languages | 19 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Thermal sensitivity (NETD) | 40 mK |
| Certification | CSA, UL/cUL, UKCA, CE, KC |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Lens viewing angle, horizontal | 55° |
| Camera pixel size | 17 µm |
| Image sensor | |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Sensor type | Microbolometer |
| Lens system | |
| Lens diameter | 7 mm |
| Maximum aperture number | 1.18 |
| Night vision | |
| Night vision | No |
| Video | |
| Maximum resolution | 384 x 288 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Gain control type | Auto |
| Privacy masking | Yes |
| Audio | |
| Audio system | 1-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Temperature sensor | Yes |
| Temperature measurement range | -40 - 350 °C |
| Temperature measurement accuracy | 5 °C |
| Fire detection | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.1 W |
| Power consumption (max) | 12.95 W |
| Power consumption (Power over Ethernet (PoE)) | 4.3 W |
| DC output voltage | 10, 12, 15, 16, 24, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Diameter | 13.2 cm |
| Length | 272 mm |
| Weight | 1.4 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Packaging content | Drill template, TORX L-keys, terminal block connectors, connector guard, cable gaskets, owner authentication key |
