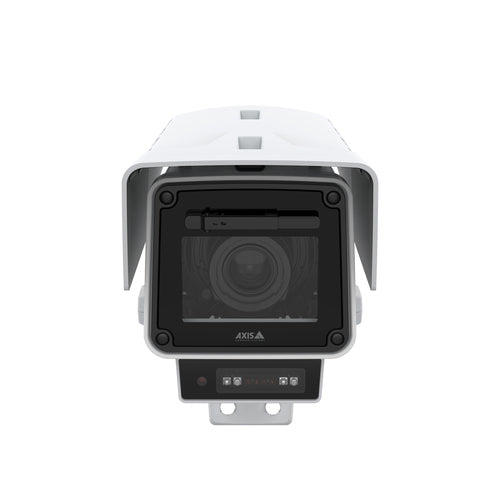

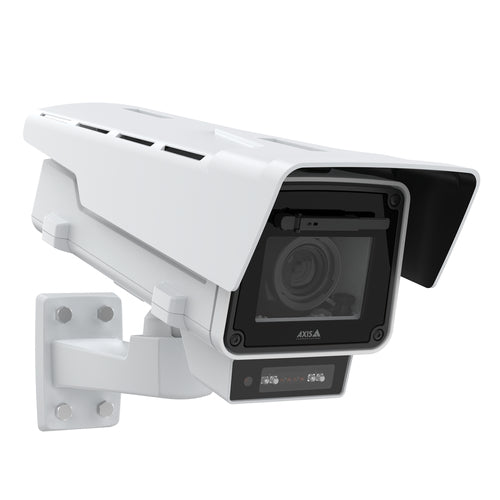

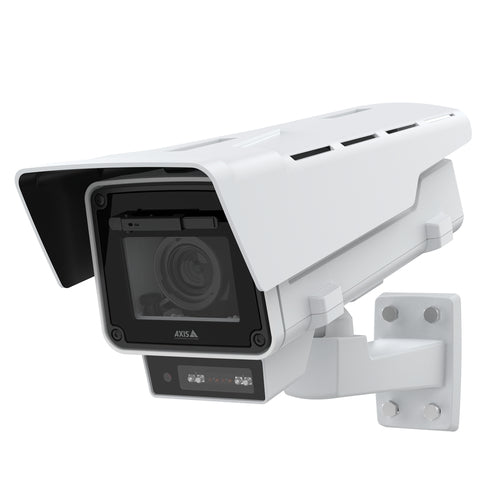

Axis 02168-001 security camera
Axis 02168-001 security camera
1 people are viewing this product
Regular price
£1,772.81 GBP
Sale price
£1,772.81 GBP
Regular price
£2,003.28 GBP
Shipping calculated at checkout.
Axis 02168-001, IP security camera, Outdoor, Wired, Digital PTZ, Pelco-D, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,...
Available stock: 3
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Minimum illumination | 0.05 lx |
| Camera shutter speed | 1/47500 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 2.5x |
| Number of lenses | 1 |
| Focal length range | 3.9 - 10 mm |
| Auto focus | Yes |
| Normal focusing range | 0.5 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265 |
| Video recording | Yes |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Gain control type | Auto |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Bit rate | Configurable bit rate |
| Audio | |
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Built-in SSD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 8194 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-TLS |
| HTTPS encryption | Yes |
| Alert notification type | E-mail, Text alert message |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 11.8 W |
| Power consumption (max) | 25.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 404 mm |
| Depth | 159 mm |
| Height | 182 mm |
| Weight | 4.4 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | BFR, PVC |
