Features
UPS topology Line-Interactive
Output power capacity 5 kVA
Output power 4000 W
Waveform Sine
Input operation voltage (min) 151 V
Input operation voltage (max) 302 V
Input frequency 50/60 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 47 - 53 Hz
Automatic Voltage Regulation (AVR) Yes
Surge energy rating 480 J
Hold time (min) 2 ms
Hold time (max) 4 ms
Number of output phases 1
Efficiency 96%
Noise level 53 dB
Surge protection Yes
Audible alarm(s) Yes
Auto-restart Yes
Ports & interfaces

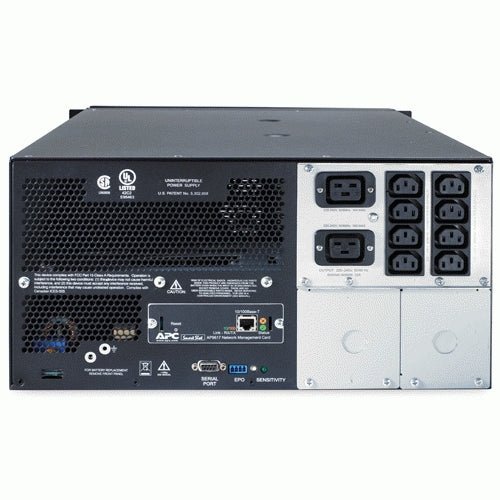

AC outlet types C13 coupler, C19 coupler
Power plug Hard Wire 3-wire
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 4
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 1632 VAh

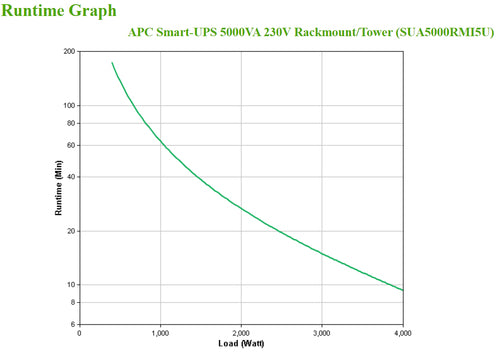

Typical backup time at full load 9.4 min
Typical backup time at half load 26.7 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Yes
Automatic battery test Yes
Cold start Yes
Design
Form factor Rackmount/Tower
Rack capacity 5U
Product colour Black
LED indicators Battery replacement
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 9000 m
Non-operating altitude 0 - 15000 m
Certificates
Compliance certificates RoHS
Certification C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Packaging content
Rack mount kit Yes
Cables included RS-232
Manual Yes
Quick installation guide Yes
Weight & dimensions
Width 483 mm
Depth 660 mm
Height 222 mm
Weight 97.7 kg
Packaging data
Software CD Yes
Package width 610 mm
Package depth 762 mm
Package height 635 mm
Package weight 106.8 kg
Logistics data
Products per pallet 4 pc(s)
Harmonized System (HS) code 85078000
Total carbon footprint (kg of CO2e) 4487.43
Products per master (outer) case 1 pc(s)
Other features
Nominal output voltage 230 V
Nominal input voltage 230 V
Packaging content Web/SNMP Management Card
