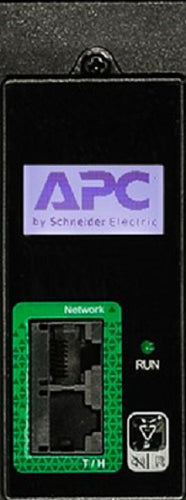

APC EPDU1116M power distribution unit (PDU)
APC EPDU1116M power distribution unit (PDU)
Available stock: 1
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 21 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Daisy chain | No |
| LED indicators | Yes |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Firmware upgradeable | Yes |
| Power | |
| Nominal input voltage | 200/208/230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, TUV |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 902 mm |
| Weight | 2.5 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package weight | 3 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 18942.6 |
