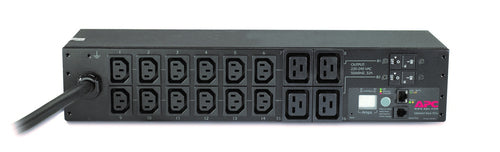

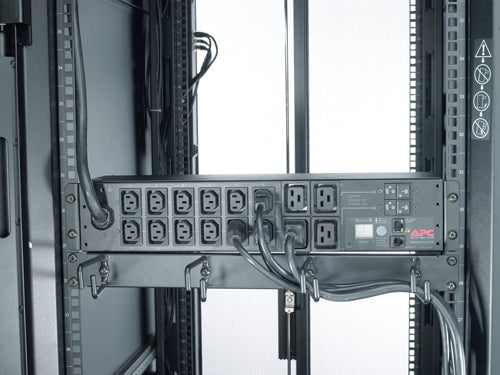

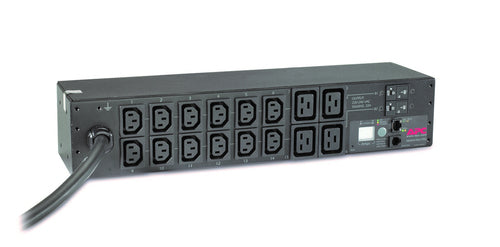

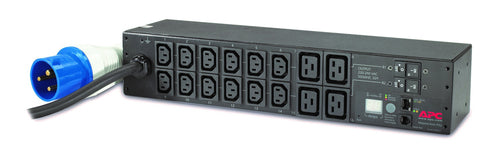

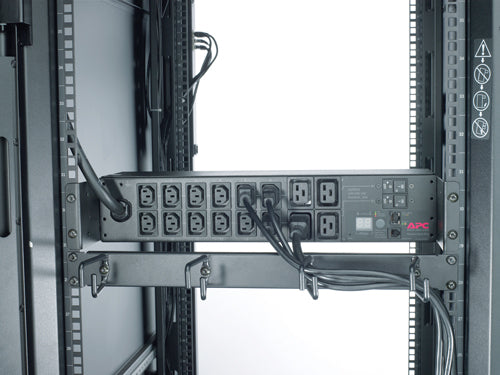

APC AP7822B power distribution unit (PDU)
APC AP7822B power distribution unit (PDU)
1 people are viewing this product
Regular price
£875.66 GBP
Sale price
£875.66 GBP
Regular price
£989.50 GBP
Shipping calculated at checkout.
APC AP7822B, Metered, 2U, Single-phase, Horizontal/Vertical, Black, 16 AC outlet(s)
Available stock: 1
-
Estimated delivery: Jul 11 - Jul 15
Share this product
Couldn't load pickup availability
Informations
Informations
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 32A 2P+E |
| Output connections | 12 x C13 4 x C19 |
| Features | |
| LED indicators | Yes |
| Cable length | 3.66 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| Nominal input voltage | 208-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Power protection features | Overload |
| Maximum power | 7680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 444 mm |
| Depth | 112 mm |
| Height | 88 mm |
| Weight | 3.36 kg |
| Packaging data | |
| Package weight | 5.41 kg |
| Package width | 508 mm |
| Package depth | 368 mm |
| Package height | 140 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 8952.07 |
