Ethernet Switch TP-Link TL-SG1218MP 18-Port PoE Unmanaged Rackmount
Ethernet Switch TP-Link TL-SG1218MP 18-Port PoE Unmanaged Rackmount
Businesses and home offices needing reliable networking solutions will benefit from the TP-Link TL-SG1218MP, an 18-port gigabit Ethernet switch optimized for smooth data transmission.

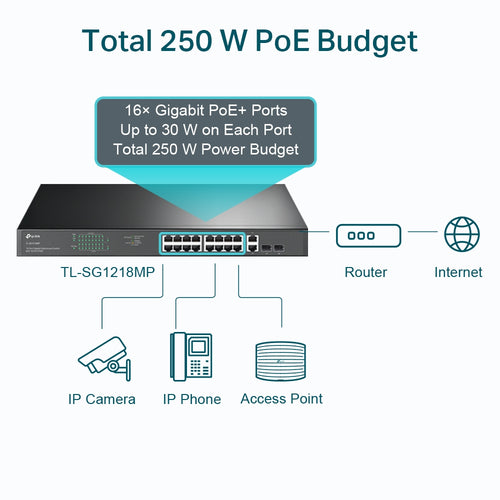

This unmanaged switch delivers exceptional PoE+ support, allowing you to power devices such as IP cameras and access points directly through the Ethernet cables. With a compact 1U rackmount design, it seamlessly integrates into existing network structures, ensuring easy installation and efficient space utilization.

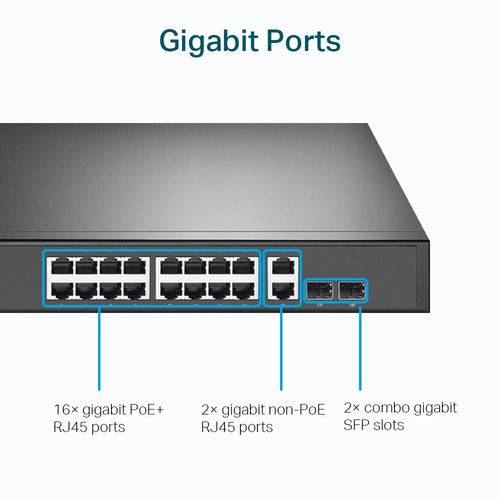

- Port Count: 18 Gigabit Ethernet Ports
- PoE+ Ports: 16 Ports for Power over Ethernet

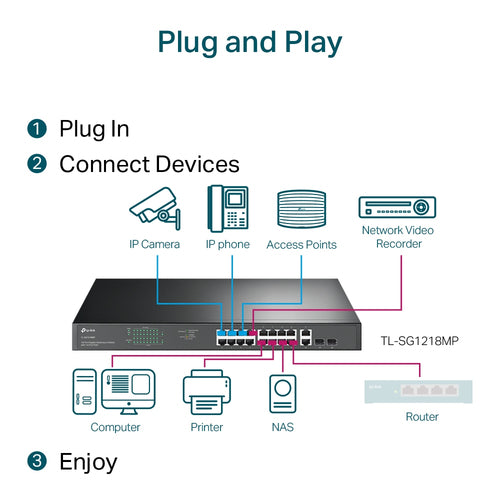

- Type: Unmanaged switch with plug-and-play setup
- Performance: Full duplex at 10/100/1000 Mbps
- Form Factor: Standard 1U rackmount
Ideal for IT professionals managing PoE devices across business and home office networks.
Available stock: 42
-
Estimated delivery: Jul 14 - Jul 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 286.64 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 977.44 BTU/h |

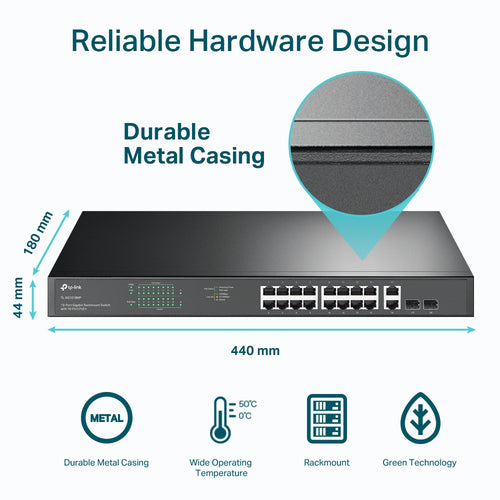

| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 3.05 kg |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
