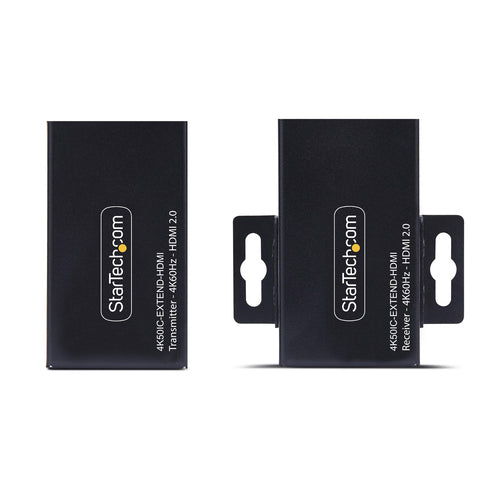

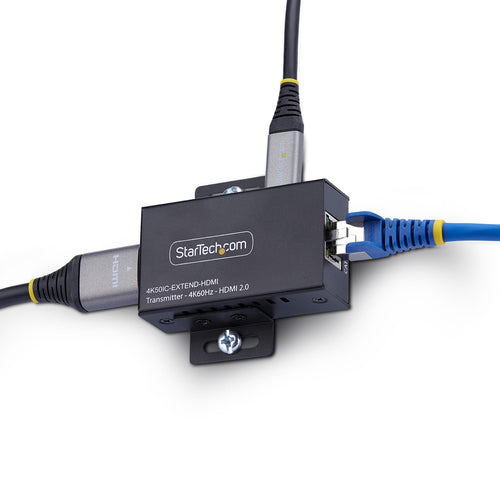

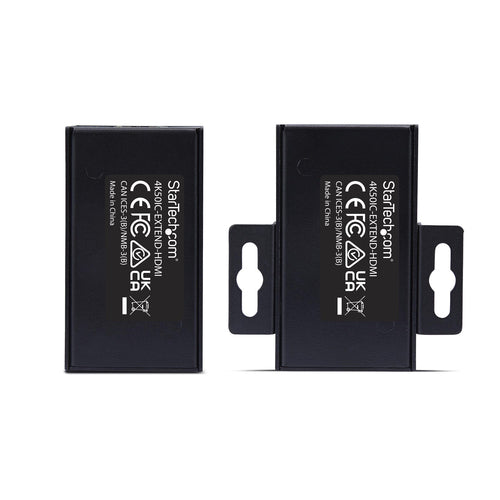

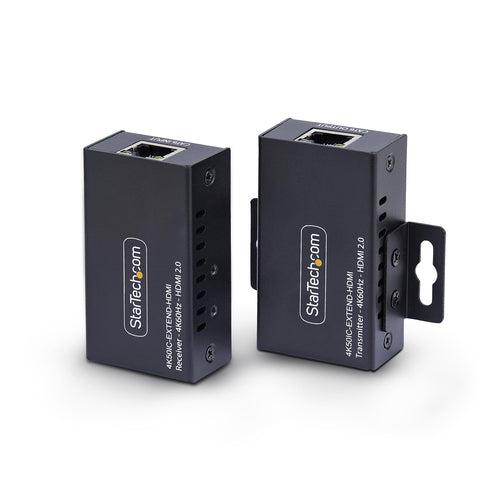

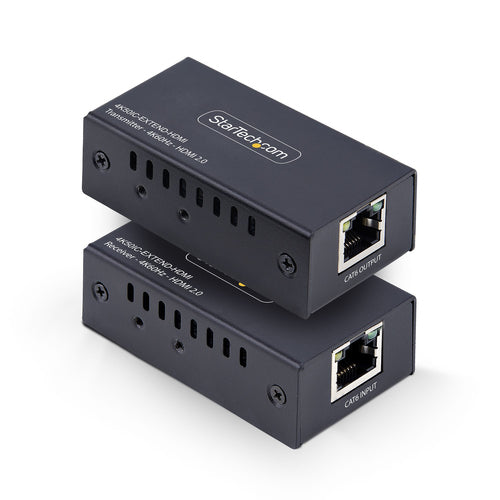

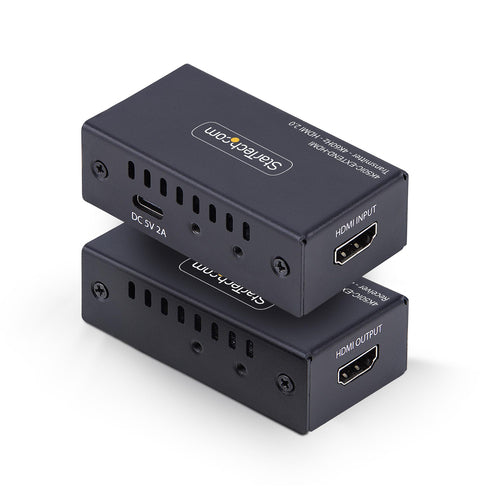

HDMI Extender 4K 60Hz Over CAT5e/CAT6 Transmitter Receiver Kit
HDMI Extender 4K 60Hz Over CAT5e/CAT6 Transmitter Receiver Kit
Transform your AV setup with the StarTech.com HDMI Extender, designed to deliver stunning 4K video over long distances. Ideal for connecting your devices in large spaces without compromising quality.
This extender kit allows you to transmit high-definition AV signals up to 200ft (60m) using CAT5e or CAT6 cables. Enjoy seamless video playback at 3840 x 2160 pixels and a refresh rate of 60Hz, making it perfect for presentations, home theaters, or professional video setups.
- Resolution: 4K (3840 x 2160 pixels)
- Refresh Rate: 60Hz
- Transmission Distance: Up to 200ft (60m)
- Compatibility: CAT5e/CAT6 cables
- Power over Cable feature for easy installation
- Compact form factor for discreet placement
Available stock: 14
-
Estimated delivery: Jul 14 - Jul 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 60 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048 |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |

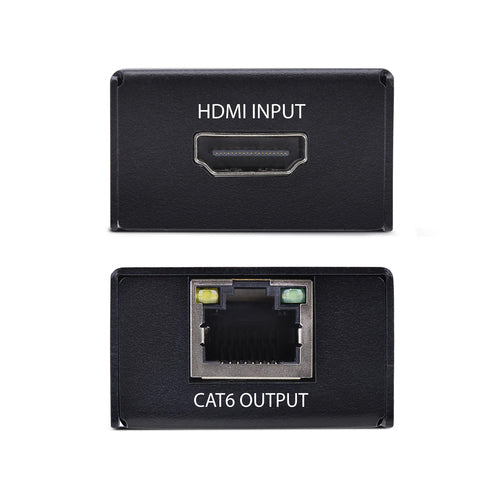

| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB connector type | USB Type-C |
| Power | |
| Power source type | USB |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Operating voltage (transmitter) | 5 V |
| Output current | 2 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (typical) | 10 W |
| USB Power Delivery (USB PD) | Yes |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 40 x 67 x 23 mm |
| Receiver weight | 92 g |
| Transmitter dimensions (WxDxH) | 40 x 67 x 23 mm |
| Transmitter weight | 92 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 117 mm |
| Package height | 77 mm |
| Package weight | 364 g |

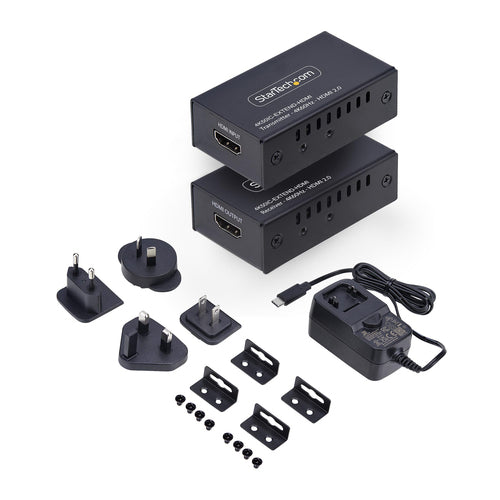

| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 30 pc(s) |
