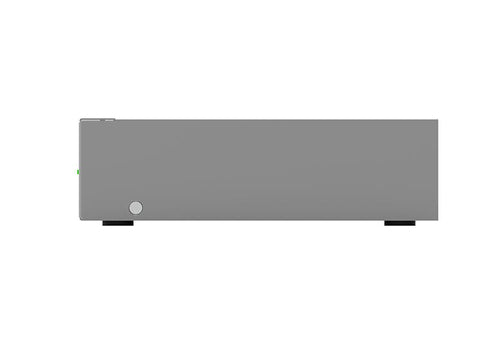

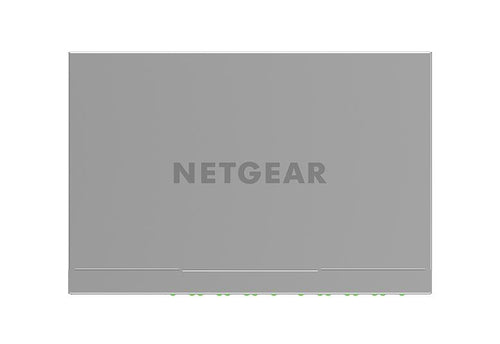

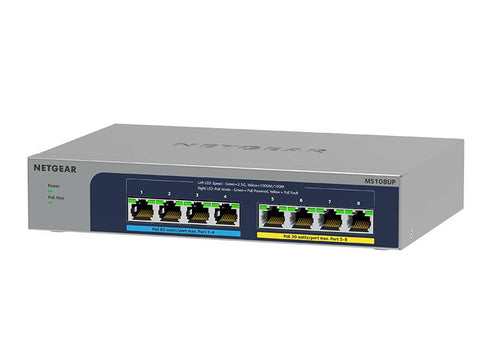

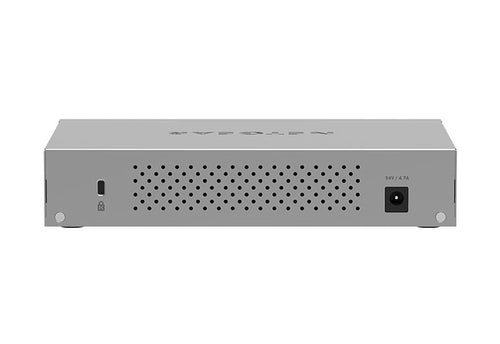

Network Switch NETGEAR MS108UP 2.5G Ethernet PoE Unmanaged Wall Mountable - MS108UP-100EUS
Network Switch NETGEAR MS108UP 2.5G Ethernet PoE Unmanaged Wall Mountable - MS108UP-100EUSFor small to mid-sized business networks needing reliable, high-speed connectivity, the NETGEAR MS108UP delivers solid performance with its 2.5G Ethernet capabilities. This unmanaged switch is ideal for environments that require quick setup and ease of use without advanced management requirements.
With support for Power over Ethernet (PoE), this switch simplifies deployment for various devices such as IP cameras and access points, removing the need for additional power supplies. Its wall-mountable design provides flexibility in installation, making it suitable for various physical spaces while ensuring a clean and efficient setup.
- Type: Unmanaged switch
- Ethernet speed: 2.5G (100/1000/2500)
- Duplex mode: Full duplex
- PoE capability: Yes
- Mounting option: Wall mountable
Built for small and mid-sized businesses and branch offices requiring straightforward, high-speed PoE connectivity for their network devices.
Available stock: 5
-
Estimated delivery: Oct 10 - Oct 14
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 3.593 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1.5 MB |
| Design | |
| Rack mounting | No |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 373643.7 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 4.7 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 923.49 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
| Certificates | |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
