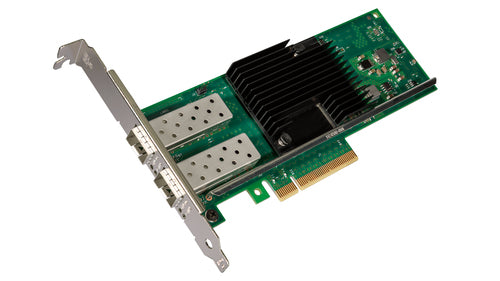

Network Card Intel X710DA2 10Gbps PCI Express Internal Wired Fiber - X710DA2
Network Card Intel X710DA2 10Gbps PCI Express Internal Wired Fiber - X710DA2The Intel X710DA2 network card provides high-speed connectivity for internal wired network deployments, ideal for data centers and enterprise environments requiring robust fiber connections.
Operating at 10000 Mbit/s, this PCI Express card enhances data transfer rates, ensuring efficient data handling. Its compatibility with fiber networks makes it suitable for modern networking standards.
- Model: X710DA2
- Speed: 10000 Mbit/s
- Interface: PCI Express
- Form Factor: Internal
- Connection Type: Wired
- Type: Fiber
- Color: Black, Green
This network card is designed for IT administrators and procurement staff looking for efficient networking solutions in high-demand environments.
Available stock: 20
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
| Supported network protocols | TCP, UDP, IP |
| VLAN tagging | Yes |
| Maximum operating distance | 10 m |
| LAN controller | Intel® X710 |
| Design | |
| Product colour | Black, Green |
| Internal | Yes |
| Chipset | X710-AM2 |
| LED indicators | Yes |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Power | |
| Power consumption (typical) | 4.5 W |
| System requirements | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Linux operating systems supported | RedHat EL Linux 6.0 |
| Other operating systems supported | FreeBSD |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 35 - 90% |
| Weight & dimensions | |
| Width | 68.6 mm |
| Depth | 167.1 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Cable type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Market segment | Server |
| Target market | Artificial Intelligence, High Performance Computing |
| Flow control support | Yes |
| Management protocols | PXE, SNMP, RMON |
| Number of VLANs | 4096 |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Trusted Execution Technology | No |
| Embedded options available | No |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| Intelligent Offloads | Yes |
| iWARP/RDMA | No |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Launch date | Q4'14 |
| Network interface card cable medium | Copper |
| Product type | Network Interface Card |
| Status | Launched |
| Last change | 64826824 |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel® Ethernet Controller X710 |
| Cabling type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Product codename | Fortville |
