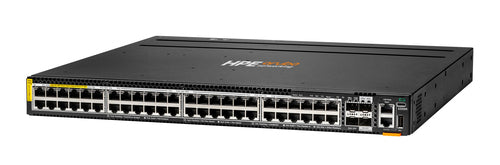

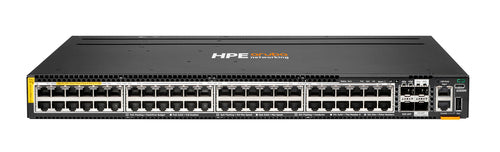

HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch

Infomations

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch

Name: HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch
Brand: HPE
SKU: R8S90A
Price: 5046.41 EUR
Availability: InStock

1 people are viewing this product

€5.046,41 EUR

€5.046,41 EUR ~~€5.702,44 EUR~~

Shipping calculated at checkout.

HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch, Managed, 5G Ethernet (100/1000/5000), Power over Ethernet (PoE)

Vendor: HPE

Type: Network Switches

Available stock: 12

★

Free Shipping over $2000

Estimated delivery: Jun 28 - Jul 02

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	5G Ethernet (100/1000/5000)
SFP module slots quantity	8
Console port	RJ-45/USB Type-C
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support	No
Data transmission
Switching capacity	880 Gbit/s
Throughput	654 Mpps
Latency (1 Gbps)	4.24 µs
Latency (10 Gbps)	1.5 µs
Packet buffer memory	16 MB
Design
Stackable	Yes
Performance
Physical stacking (units)	10
Built-in processor	Yes
Processor model	ARM Cortex-A72
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption note	With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	2880 W
Other features
Latency	1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs
Memory and processor	Quad Core Arm Cortex™ A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC 16 MB Shared Packet Buffer Memory
I/O ports	48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Performance management	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial)	6.71 kg (14.8 lbs)
Dimensions (W x D x H) (imperial)	43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2")

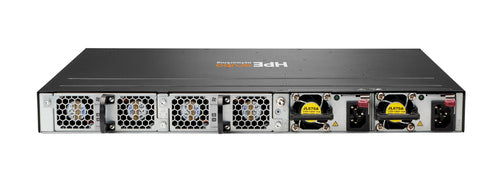

Fan	Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	44 mm
Depth	442 mm
Height	385 mm
Weight	6.71 kg
