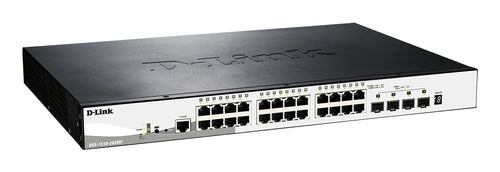

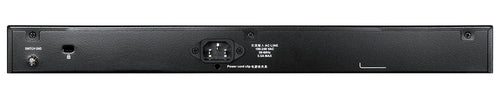

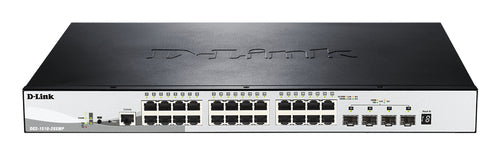

Managed Switch D-Link DGS-1510-28XMP Gigabit Ethernet PoE L2/L3 Rack Mount - DGS-1510-28XMP/E
Managed Switch D-Link DGS-1510-28XMP Gigabit Ethernet PoE L2/L3 Rack Mount - DGS-1510-28XMP/EBusinesses requiring efficient management of PoE devices in a rack-mounted environment will benefit from the D-Link DGS-1510-28XMP. This managed switch is designed for L2/L3 throughput, making it ideal for network deployments that rely on gigabit connectivity.
With full duplex support and Power over Ethernet (PoE), it delivers reliable performance for powering network devices while handling vital data streams with ease. Connect multiple devices seamlessly and manage network traffic effectively to ensure optimal operational outcomes.
- Type: Managed switch
- Layer: L2/L3
- Speed: Gigabit Ethernet (10/100/1000)
- Duplex: Full duplex
- PoE: Yes, Power over Ethernet
- Mounting: Rack mounting
Ideal for IT administrators managing network infrastructures that require PoE capabilities and efficient data handling in enterprise environments.
Available stock: 10
-
Estimated delivery: Oct 10 - Oct 14
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.24 Mpps |
| MAC address table | 16384 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 768 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 274796 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 436.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1487.78 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 308.5 mm |
| Height | 44 mm |
| Weight | 4.25 kg |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 510 mm |
| Package height | 121 mm |
| Package weight | 7.06 kg |
| Technical details | |
| Shipping (inner) case height | 48.5 cm |
| Shipping (inner) case width | 38.5 cm |
| Shipping (inner) case length | 53 cm |
| Shipping (inner) case net weight | 14.3 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 561.6 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.08 m |
| Pallet gross weight (sea) | 561.6 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.08 m |
| Shipping (inner) case gross weight | 22.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
