Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces

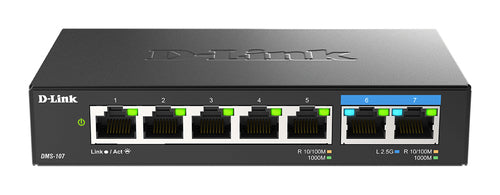

Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5

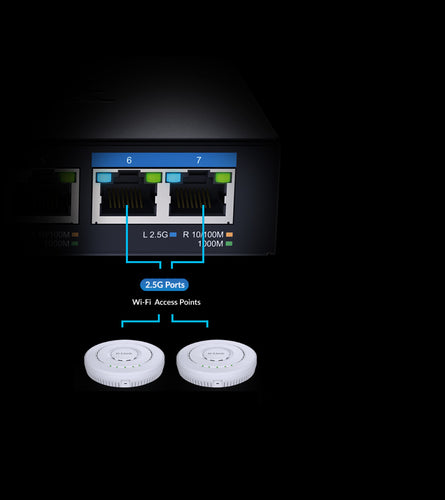

2.5G Ethernet (copper) ports quantity 2
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
MAC address auto-learning supported Yes
Data transmission
Switching capacity 20 Gbit/s
Forwarding rate 14.88 Mpps
MAC address table 2000 entries
Store-and-forward Yes
Number of queues 8
Packet buffer memory 2 MB
Design
Product colour Black
Housing material Metal
LED indicators Activity, Link, Power
Performance
Fanless Yes
Mean time between failures (MTBF) 944277.78 h
Power
Power source DC

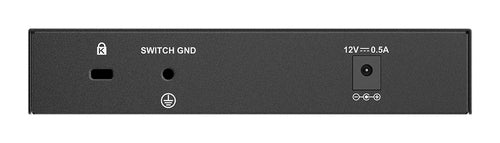

DC input voltage 12 V
Input current 0.5 A
Power consumption (typical) 3.37 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 14.28 BTU/h
Weight & dimensions
Width 145 mm
Depth 28 mm
Height 82 mm
Weight 295.2 g
Sustainability
Sustainability compliance Yes
Certificates
Compliance certificates BSMI, CE, Low Voltage Directive (LVD), RoHS
