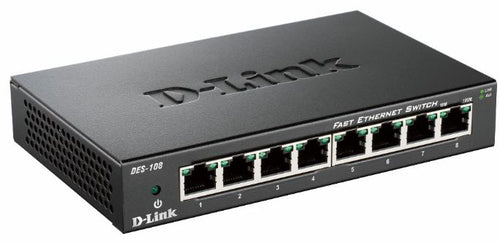

D-Link DES-108
D-Link DES-108Available stock: 10
-
Estimated delivery: Oct 04 - Oct 08
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1.6 Gbit/s |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.768 MB |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Performance | |
| Mean time between failures (MTBF) | 511323 h |
| Power | |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 4.5 W |
| Other features | |
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 162 x 102 x 28 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 208 mm |
| Package depth | 250 mm |
| Package height | 68 mm |
| Package weight | 610 g |
| Technical details | |
| Shipping (inner) case height | 44.3 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case net weight | 6.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 357.5 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 2.07 m |
| Pallet gross weight (sea) | 357.5 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Pallet height (sea) | 2.07 m |
| Shipping (inner) case gross weight | 7 kg |
| Certificates | |
| Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
