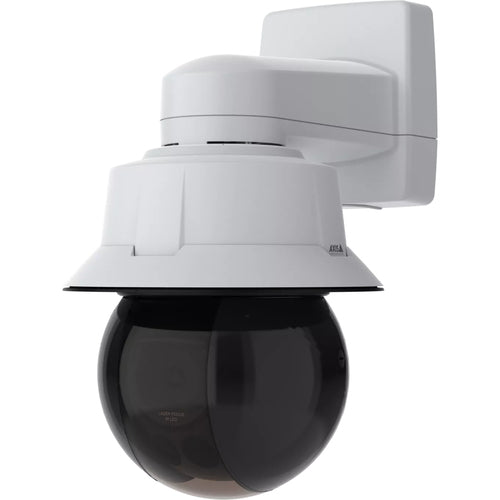

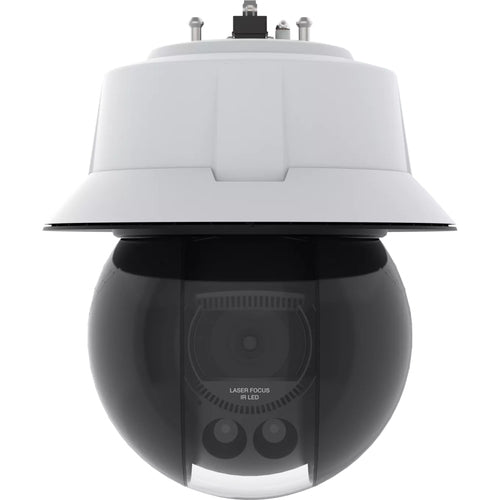

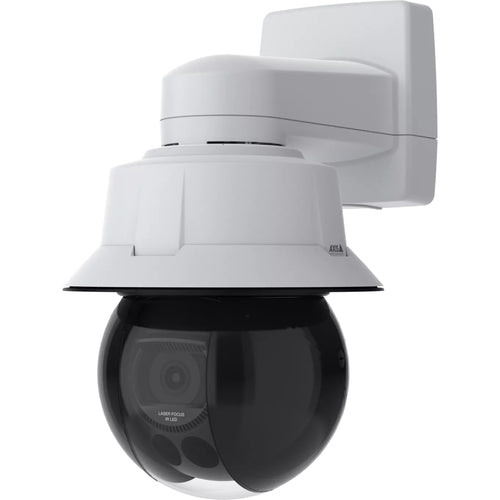

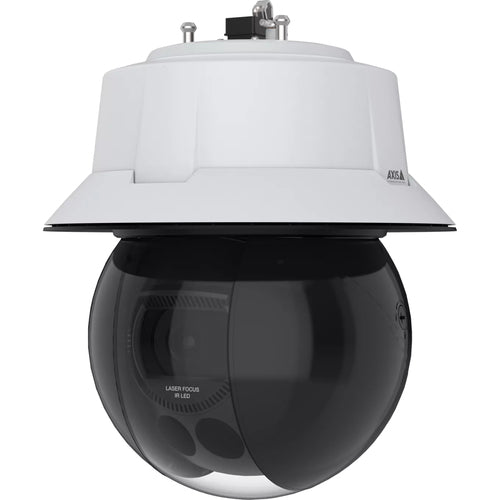

IP Security Camera Axis Q6358-LE NM Indoor Outdoor Wired Preset Point - 02977-301
IP Security Camera Axis Q6358-LE NM Indoor Outdoor Wired Preset Point - 02977-301For organizations requiring reliable surveillance across diverse environments, the Axis Q6358-LE NM security camera delivers a versatile solution for both indoor and outdoor settings. Its wired design ensures a stable connection, making it ideal for installations where wireless connectivity may be unreliable.
Featuring preset point functionality, this camera is engineered to capture critical moments with precision and clarity. With compliance to multiple EMC standards, you can trust that the Axis Q6358-LE NM minimizes interference, ensuring high-quality video feeds essential for security operations.
- Type: IP security camera
- Deployment: Indoor & outdoor
- Connection: Wired
- Functionality: Preset point
- EMC Compliance: EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35
Designed for security teams seeking effective surveillance solutions, the Axis Q6358-LE NM is suitable for varied environments requiring consistent and dependable monitoring.
Available stock: 10
-
Estimated delivery: Oct 10 - Oct 14
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Railway: IEC 62236-4 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1 IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B), ISO 12944-6 C5 NIST SP500-267 ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium |
| Protection features | Impact resistant, Weather resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
| Minimum illumination | 0.009 lx |
| Lens viewing angle, horizontal | 60.6° |
| Lens viewing angle, vertical | 36.5° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 550 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 550 °/sec |
| Camera shutter speed | 1/111000 - 1/2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 31x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Zoom speed | 1 s |
| Focal length range | 6.91 – 214.64 |
| Auto focus | Yes |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 300 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 8192 MB |
| Internal memory | 4096 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Moving object |
| Power | |
| Power consumption (typical) | 13.7 W |
| Power consumption (max) | 51 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 239 mm |
| Depth | 239 mm |
| Height | 291 mm |
| Weight | 4.4 kg |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | CFR, PVC/BFR |
