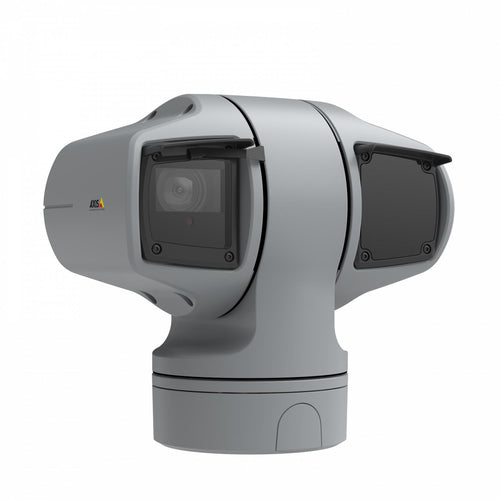

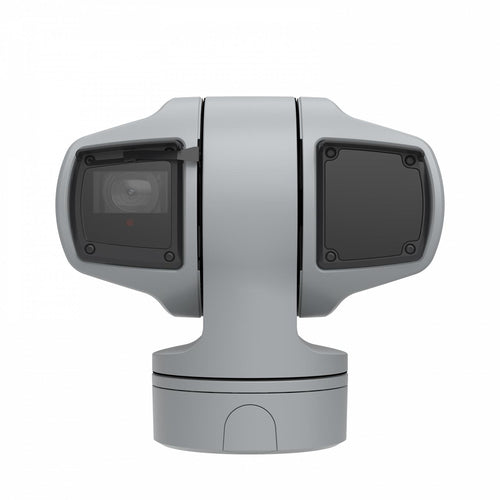

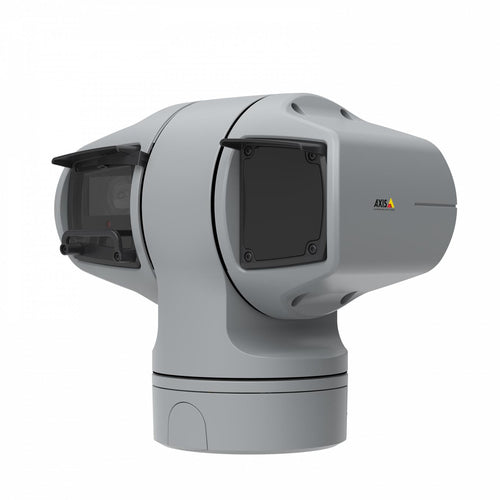

IP Security Camera Axis 02316-002 Outdoor Wired ARTPEC-7 - 02316-002
IP Security Camera Axis 02316-002 Outdoor Wired ARTPEC-7 - 02316-002Outdoor security environments that demand reliable and high-definition surveillance will find the Axis 02316-002 IP security camera to be an essential tool. Ideal for monitoring perimeters or sensitive areas, this wired camera utilizes the ARTPEC-7 chipset for superior image processing performance.
With support for multiple languages, including Simplified and Traditional Chinese, this camera caters to diverse deployment scenarios. Designed for outdoor use, it ensures consistent performance in various weather conditions, providing peace of mind for both residential and commercial properties.
- Camera Type: IP security camera
- Outdoor Use: Yes
- Connectivity: Wired
- Chipset: ARTPEC-7
- Language Support: Multiple including Simplified Chinese, English, German, and more
- Compliance: EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3
Built for security professionals and businesses seeking comprehensive outdoor surveillance solutions.
Available stock: 10
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARTPEC-7 |
| Built-in processor | Yes |
| Number of languages | 18 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Certification | EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Grey |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP68 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.05 lx |
| Lens viewing angle, horizontal | 63.8° |
| Lens viewing angle, vertical | 37° |
| Tilt angle range | -90 - 90° |
| Tilt speed | 150 °/sec |
| Pan speed | 150 °/sec |
| Camera shutter speed | 1/111000 - 1/2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 31x |
| Digital zoom | 12x |
| Focal length range | 6.91 - 214.64 mm |
| Auto focus | Yes |
| Maximum aperture number | 4.6 |
| Minimum aperture number | 1.36 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 400 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 50 fps |
| Video streaming | Yes |
| Privacy masking | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3bt |
| Supported network protocols | IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | PoE |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 25 W |
| Power consumption (max) | 71 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 313 mm |
| Depth | 210 mm |
| Height | 330 mm |
| Weight | 8.7 kg |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Packaging content | Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port |
