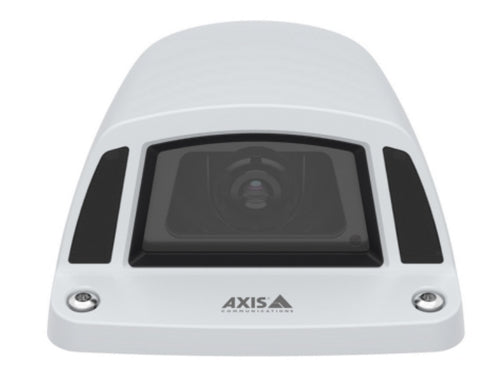

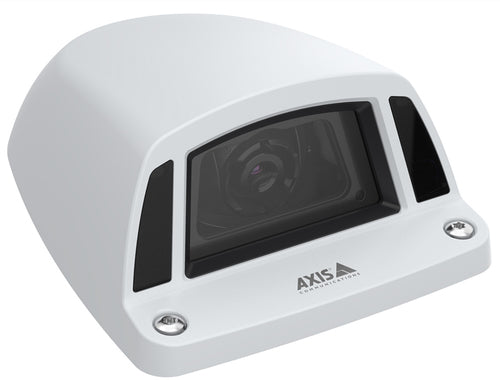

Axis 02090-001 security camera
Axis 02090-001 security camera
Available stock: 3
-
Estimated delivery: Oct 10 - Oct 14
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, EN 45545–2, UN ECE R118, IS 13252, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, NIST SP500-267 |
| Design | |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium, Tempered glass |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10+ |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.02 lx |
| Angle of rotation | 350° |
| Lens viewing angle, horizontal | 56° |
| Lens viewing angle, vertical | 30° |
| Tilt angle range | 0 - 50° |
| Pan range | -20 - 20° |
| Camera shutter speed | 1/33500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p |
| Frame rate | 45 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 6.3 W |
| Power consumption (max) | 11.8 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 116 mm |
| Height | 63 mm |
| Weight | 770 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
