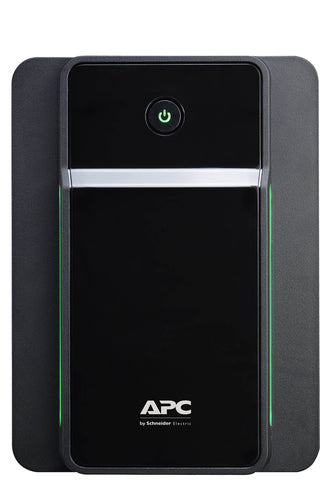

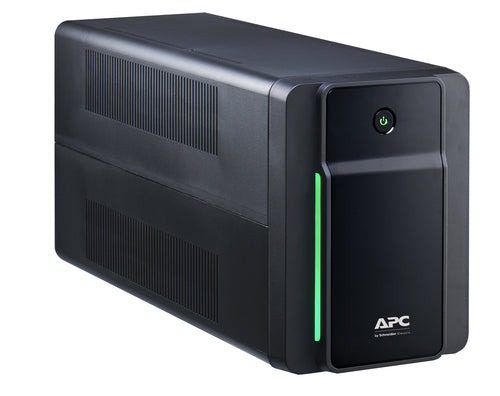

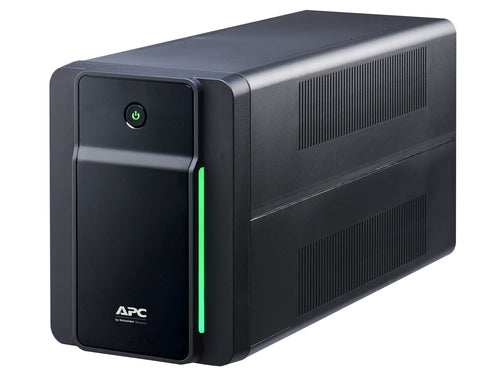

UPS APC BX1200MI 1200VA 650W 6x IEC C13 Line-Interactive Tower - BX1200MI
UPS APC BX1200MI 1200VA 650W 6x IEC C13 Line-Interactive Tower - BX1200MIAPC BX1200MI provides reliable backup power for critical devices in IT environments, ensuring continuous operation during outages.
With a capacity of 1200VA and 650W, this line-interactive UPS features six IEC C13 outlets, making it suitable for servers and network equipment.
- VA rating: 1200VA
- Wattage: 650W
- Outlets: 6x IEC C13
- Form factor: Tower
- AVR: Yes
- Input voltage: 230V
- Output voltage: Sine wave
- Voltage range: 140V - 300V
Designed for IT admins needing dependable power solutions to safeguard equipment during outages.
Available stock: 15
-
Estimated delivery: Oct 11 - Oct 15
Share this product
Couldn't load pickup availability
Informations
Informations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.2 kVA |
| Output power | 650 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |

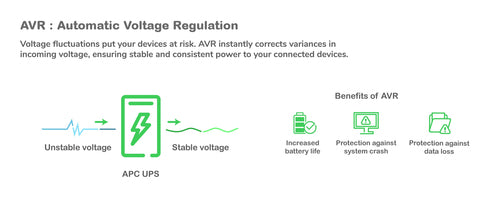

| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.54 |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm |

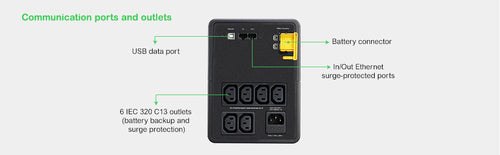

| Ports & interfaces | |

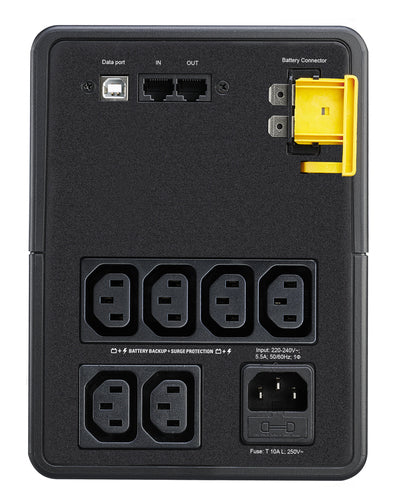

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Ethernet LAN (RJ-45) ports | 2 |
| SmartSlot | No |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |

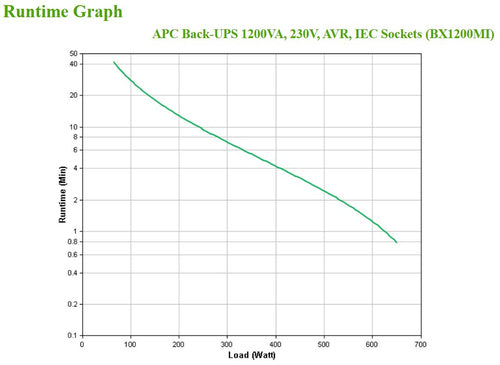

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 5 min |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
| Design | |
| Form factor | Compact |
| Cable length | 1.2 m |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Packaging content | |
| Cables included | Input power cable |
| Management card included | No |
| Manual | Yes |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 7.6 kg |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 8.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
