Features
UPS topology Line-Interactive
Output power capacity 0.75 kVA
Output power 500 W
Waveform Pure sine
Input operation voltage (min) 151 V
Input operation voltage (max) 302 V
Input frequency 50/60 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V

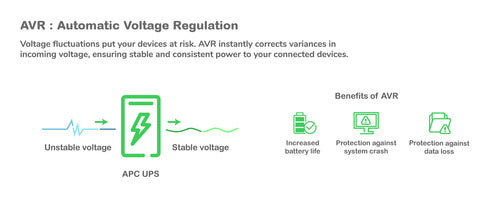

Automatic Voltage Regulation (AVR) Yes
Surge energy rating 459 J
Hold time (max) 2 ms
Efficiency 97.7%
Noise level 42 dB
Surge protection Yes
Audible alarm(s) Yes
Auto-restart Yes

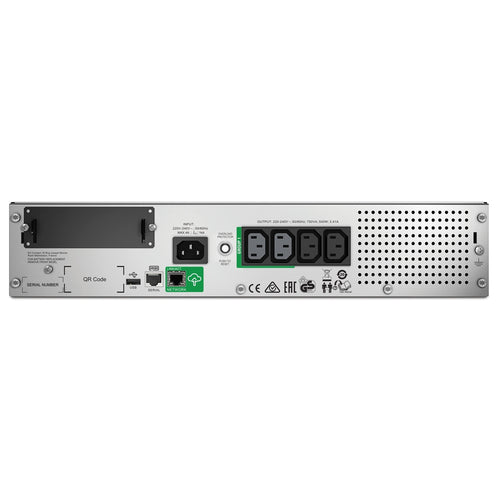

Ports & interfaces
AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 4 AC outlet(s)
Number of output IEC jumpers 2

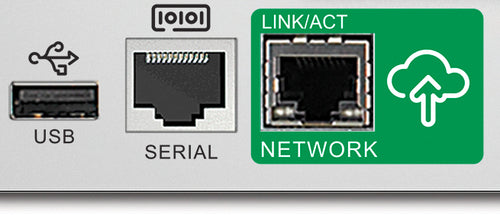

USB port Yes
Serial interface Yes
Serial interface type RJ-45
SmartSlot Yes

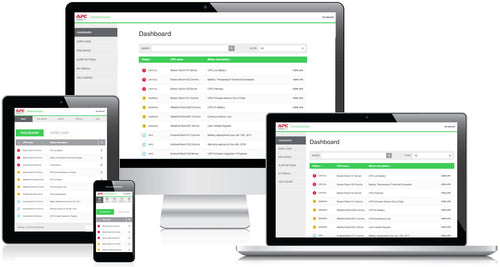

SmartConnect port Yes
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 168 VAh

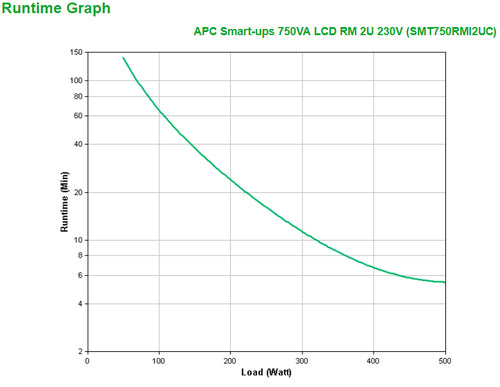

Typical backup time at full load 5.5 min
Typical backup time at half load 16 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Yes
Automatic battery test Yes
Cold start Yes
Design

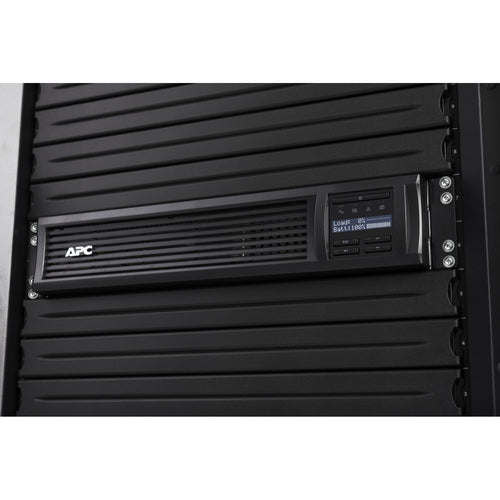

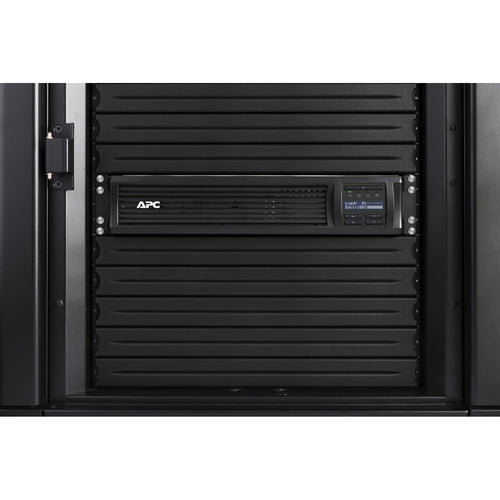

Form factor Rackmount
Rack capacity 2U
Product colour Black
LED indicators Battery replacement
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Certificates
Compliance certificates RoHS
Certification CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Packaging content
Rack mount kit Yes
Cables included RS-232, USB cable
Management card included No
Quick installation guide Yes
Sustainability
Sustainability certificates Green Premium
Weight & dimensions
Width 432 mm
Depth 406 mm
Height 89 mm
Weight 17.3 kg
Packaging data

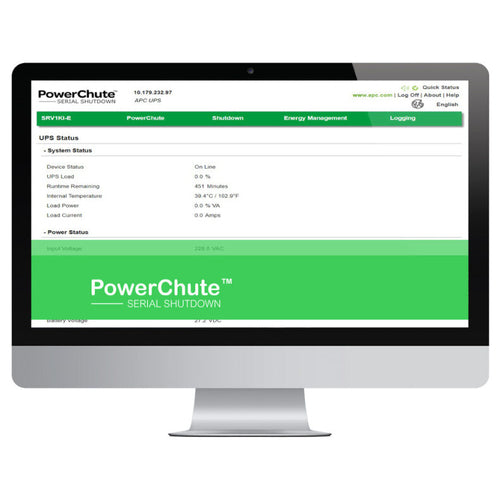

Software CD Yes
Package width 546 mm
Package depth 584 mm
Package height 241 mm
Package weight 21.2 kg
Logistics data
Products per pallet 16 pc(s)
Harmonized System (HS) code 85078000
Total carbon footprint (kg of CO2e) 821.3
