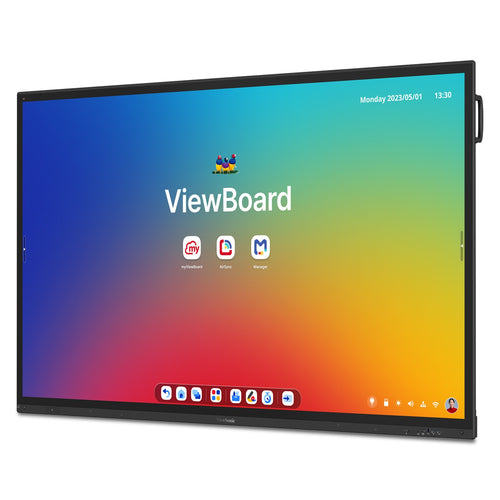

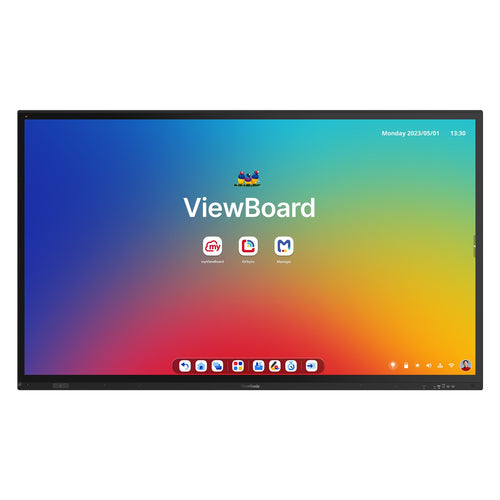

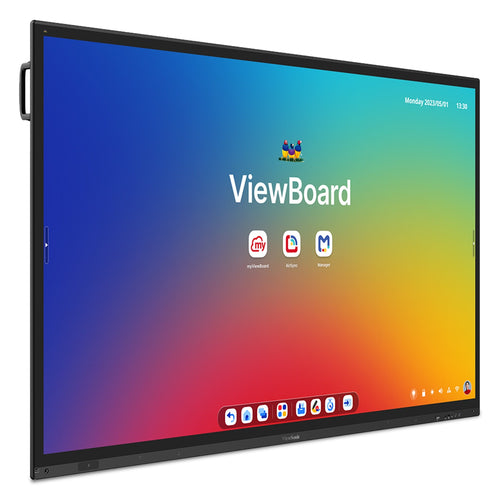

Viewsonic IFP8663 interactive whiteboard
Viewsonic IFP8663 interactive whiteboardAvailable stock: 47
-
Estimated delivery: Oct 04 - Oct 08
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display brightness | 450 cd/m² |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| Panel type | ADS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 5000:1 |
| Response time | 8 ms |
| Maximum refresh rate | 60 Hz |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Projected Capacitive (PCAP) |
| Number of simultaneous touchpoints | 50 |
| Touch resolution | 32767 x 32767 pixels |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Working area | 1895.04 x 1065.96 mm |
| Haze rate | 25% |
| Low Blue Light technology | Yes |
| Hardness | 9H |
| Accuracy touch | Active pen: ±1.0mm, Passive pen: ±1.5mm |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 15 EDLA |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A76 + ARM Cortex A55 |
| Processor cores | 8 |
| User memory | 128 GB |
| RAM capacity | 16 GB |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 40 W |
| Built-in subwoofer | Yes |
| Subwoofer RMS power | 20 W |
| Built-in microphone | Yes |
| Number of microphone arrays | 8 |
| Projector | |
| Built-in projector | No |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Near Field Communication (NFC) | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity | 4 |
| USB Type-C ports quantity | 3 |
| HDMI version | 2.1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| Microphone connectivity | 3.5 mm |
| Headphone connectivity | 3.5 mm |
| Audio output | 1 |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Mean time between failures (MTBF) | 50000 h |
| Performance | |
| Ambient light sensor | Yes |
| Humidity sensor | Yes |
| Proximity sensor | Yes |
| Temperature sensor | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| PM2.5 sensor | Yes |
| Power | |
| Power consumption (typical) | 121.1 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| Energy efficiency class | F |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 1961.9 mm |
| Depth | 79.5 mm |
| Height | 1172.5 mm |
| Weight | 65.1 kg |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1291 mm |
| Package weight | 84.2 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| USB cable length | 1.8 m |
| Cables included | HDMI, USB, USB Type-C |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Stylus included | Yes |
| Number of stylus pens | 2 |
| Bundled software | Basic Annotation Software: myViewBoard for Android Pro Annotation Software: myViewBoard for Windows (embedded in VPC) Pro Whiteboarding Software: TeamOne Wireless Presentation: AirSync Device Management: Manager ViewSonic Launcher: Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), NCC, RoHS, WEEE, cTUVus |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Pallet gross width | 2.14 m |
| Pallet gross length | 114 cm |
| Pallet gross height | 141.7 cm |
| Products per master (outer) case | 1 pc(s) |
