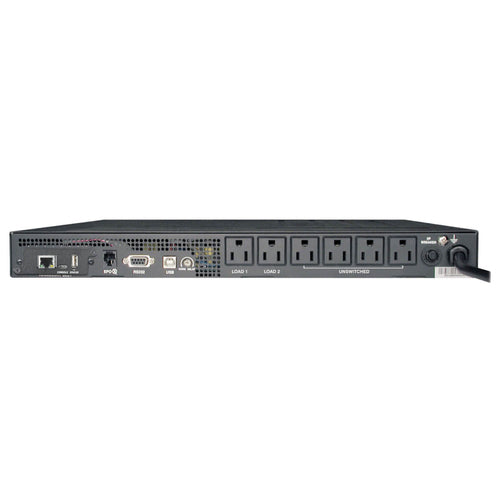

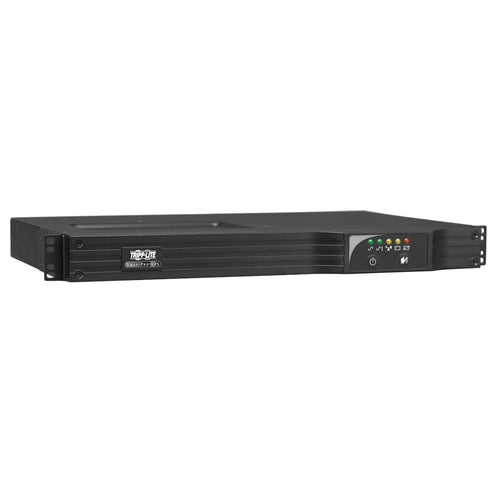

Tripp Lite SMART1000RM1UN uninterruptible power supply (UPS)
Tripp Lite SMART1000RM1UN uninterruptible power supply (UPS)
Available stock: 2
-
Estimated delivery: Oct 10 - Oct 14
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 120 V |
| Input frequency | 60 Hz |
| Output operation voltage (max) | 120 V |
| Output voltage regulation | - 21 - 8% |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 9.2 A |
| Surge energy rating | 450 J |
| Number of input phases | 1 |
| Efficiency | 99% |
| Power factor | 0.8 |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 14 min |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Cable length | 3.048 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | FCC, CSA, UL1778, NOM |
| Packaging content | |
| Cables included | USB cable |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 425.4 mm |
| Height | 44.4 mm |
| Weight | 14.5 kg |
| Packaging data | |
| Package width | 541 mm |
| Package depth | 581.7 mm |
| Package height | 134.6 mm |
| Package weight | 15.9 kg |
| Logistics data | |
| Master (outer) case width | 541 mm |
| Master (outer) case length | 581.7 mm |
| Master (outer) case height | 134.6 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
