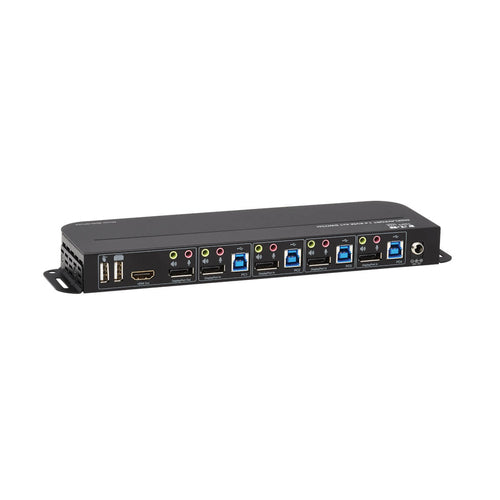

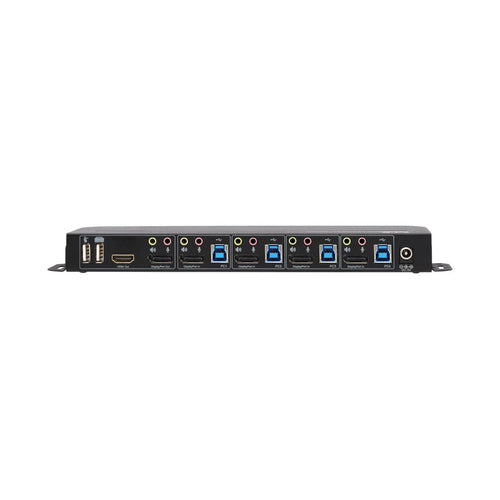

Tripp Lite B005-DPUA4 KVM switch
Tripp Lite B005-DPUA4 KVM switch
Available stock: 3
-
Estimated delivery: Oct 02 - Oct 06
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 5 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Auto scan delay (min) | 5 s |
| Auto scan delay (max) | 999 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Number of users | 1 user(s) |
| Number of displays supported | 4 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power consumption (typical) | 11.75 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 243.1 mm |
| Depth | 74.9 mm |
| Height | 25.9 mm |
| Weight | 500 g |
| Packaging data | |
| Package width | 230.1 mm |
| Package depth | 200.4 mm |
| Package height | 65 mm |
| Package weight | 550 g |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 340.1 mm |
| Master (outer) case length | 249.9 mm |
| Master (outer) case height | 199.9 mm |
| Master (outer) case gross weight | 3.5 kg |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332255027 |
| Country of origin | Vietnam |
