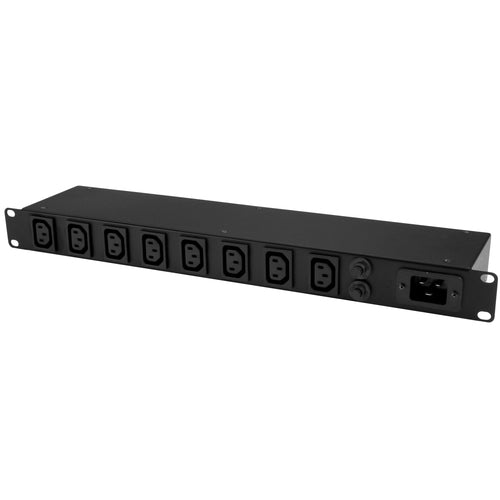

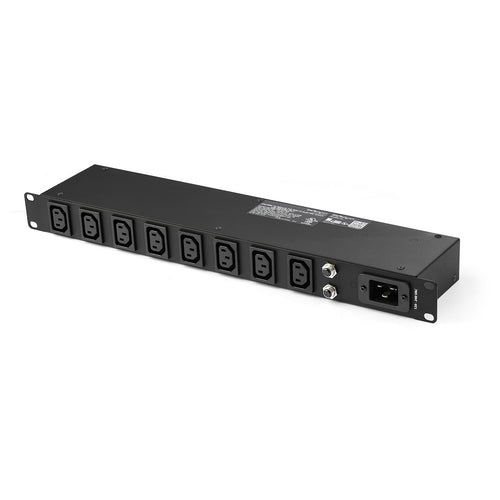

Power Distribution Unit StarTech PDU08C13H 8 AC Outlets 16A 240V 1U Rack Mount
Power Distribution Unit StarTech PDU08C13H 8 AC Outlets 16A 240V 1U Rack Mount

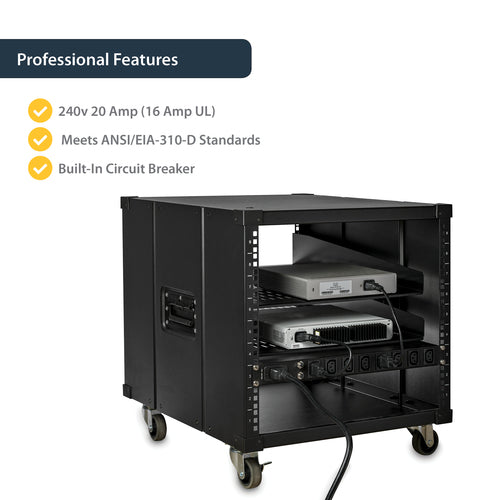

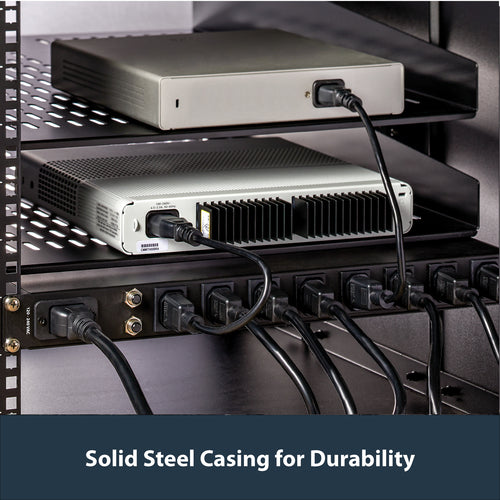

Data centers and server racks that require organized and centralized power management can benefit from the StarTech PDU08C13H. This reliable 1U rack mount Power Distribution Unit ensures convenient access to multiple power outlets for critical equipment.
With 8 AC outlets equipped with IEC C13 couplers, the PDU08C13H supports a maximum load of 16A and input voltage of 240V, providing consistent power delivery. Its horizontal orientation and compact design allow for efficient installation and space management within server environments.

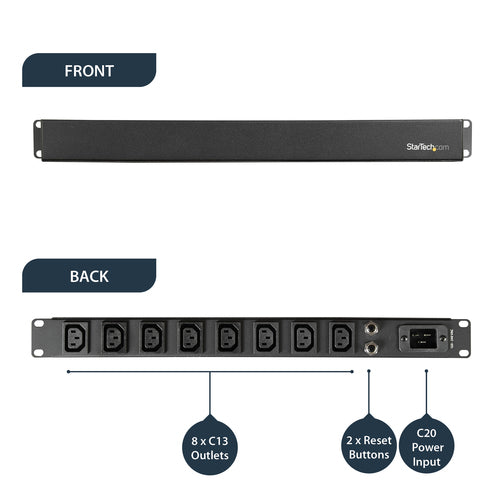

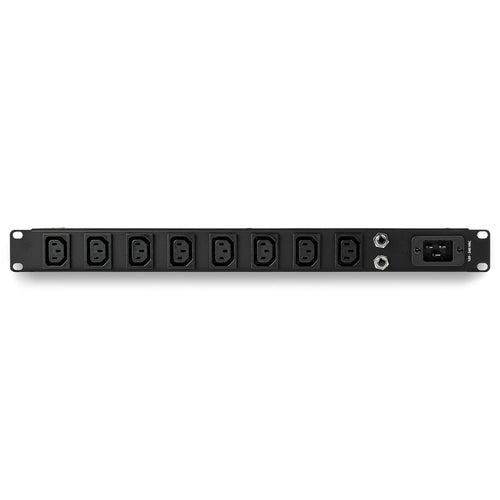

- AC Outlets: 8 x IEC C13
- Maximum Load Capacity: 16A
- Input Voltage: 240V
- Rack Height: 1U
- Mounting Orientation: Horizontal
- Use Case: Ideal for data centers and server applications
Perfect for IT professionals managing power distribution in data centers, server racks, and enterprise environments.
Available stock: 275
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Features | |

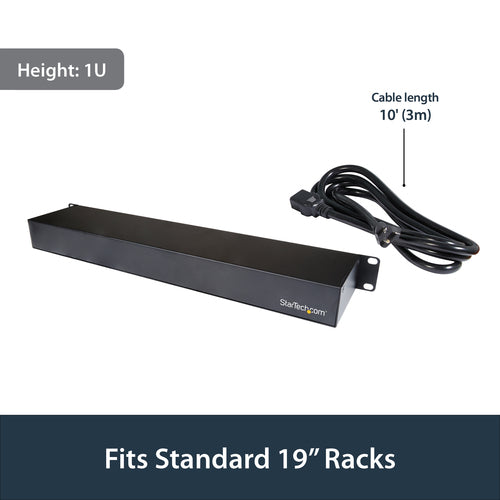

| Cable length | 3 m |
| Power | |
| Nominal input voltage | 110 - 240 V |
| Maximum current | 20 A |
| Output voltage | 240 V |
| Load capacity | 1920 VA |
| Maximum total current draw per phase | 20 A |
| Surge energy rating | 3600 J |
| Surge protection | Yes |
| Certificates | |
| Compliance certificates | CE |
| Sustainability | |
| Sustainability certificates | UL ECOLOGO |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 100 mm |
| Height | 44 mm |
| Weight | 2 kg |

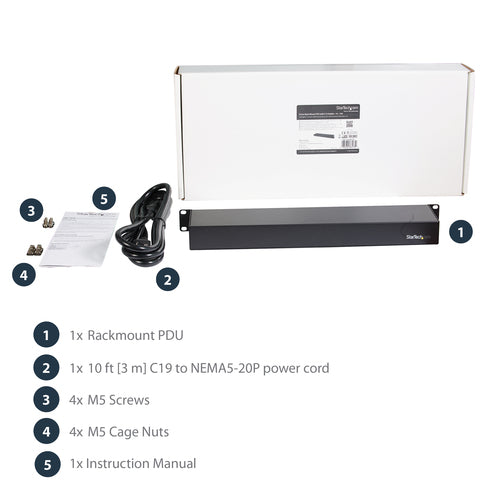

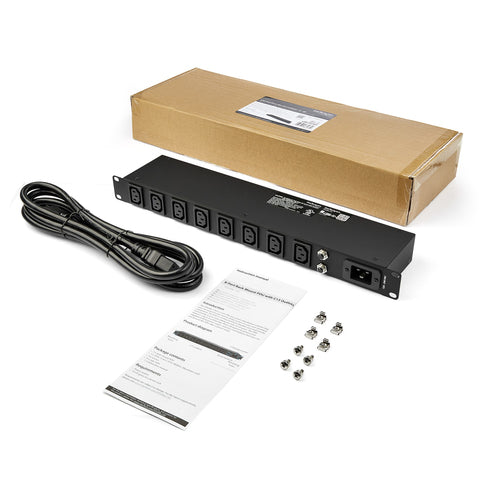

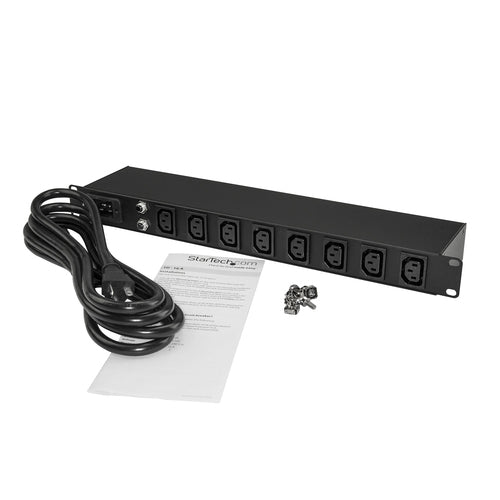

| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Screws included | Yes |
| Number of screws | 4 |
| Screw nuts included | Yes |
| Number of screw nuts | 4 |
| Packaging data | |
| Package weight | 2.4 kg |
| Package width | 190 mm |
| Package depth | 550 mm |
| Package height | 82 mm |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 567 mm |
| Master (outer) case height | 212 mm |
| Products per master (outer) case | 5 pc(s) |
