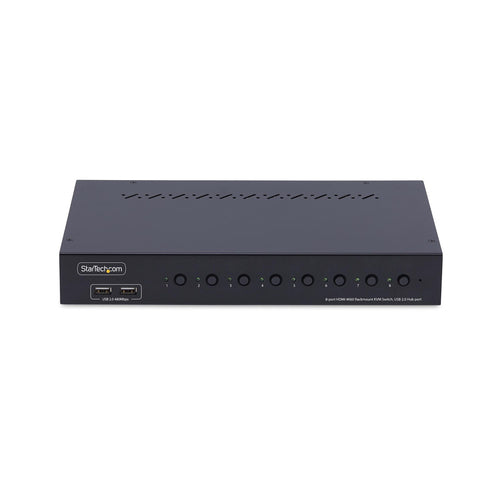

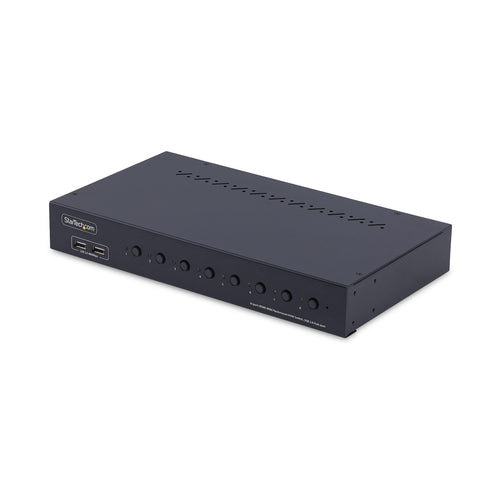

In IT environments where multiple computers need to be controlled from a single workstation, the StarTech.com 8-Port HDMI KVM Switch provides a seamless solution. Ideal for data centers and server rooms, this KVM switch simplifies management by allowing one user to switch between multiple systems effortlessly.

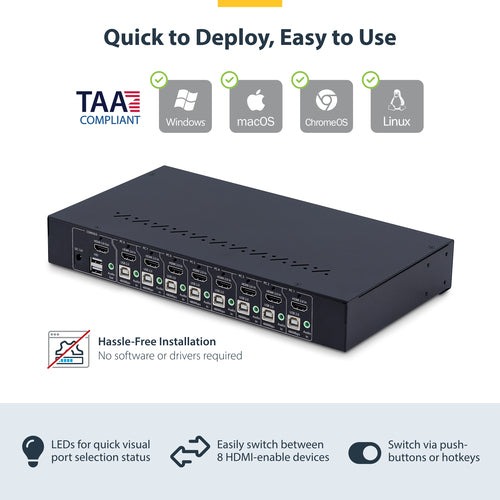

With support for 4K 60Hz resolutions, this device ensures clear, crisp visuals on your displays while facilitating easy switching via push-button or hotkeys. The included 4-port USB hub enhances connectivity options for peripherals, making it versatile for various configurations in both Windows and macOS workflows.
- Ports: 8-Port HDMI
- Resolution: 4K 60Hz HDMI 2.0
- Switching: Push-Button & Hotkey
- USB Hub: 4-Port
- Form Factor: 1U Rack Mount
- Power: 36W
- Color: Black
- Compliance: OS Independent, TAA Compliant
Designed for IT administrators, this KVM switch is perfect for environments where operational efficiency and centralized control of multiple systems are essential.
Available stock: 188
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

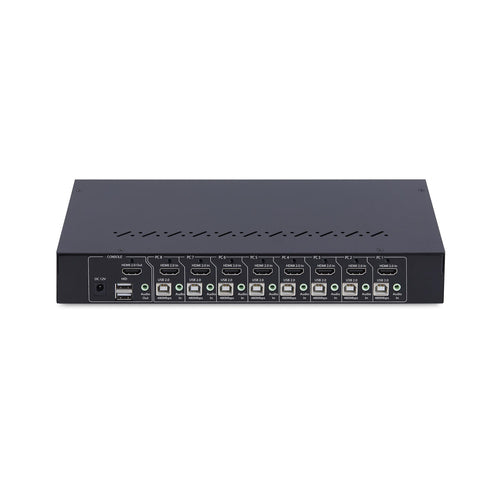

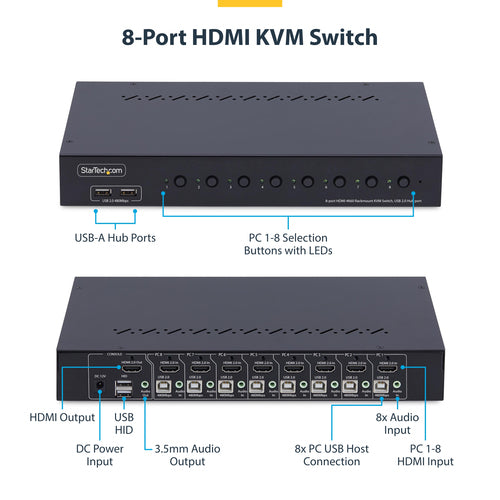

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| Headphone outputs | 1 |
| Number of microphone inputs | 8 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 s |
| Daisy chain | No |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Zinc |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 73905 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 164 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 288 mm |
| Package height | 70 mm |
| Package weight | 2.3 kg |
| Packaging content | |

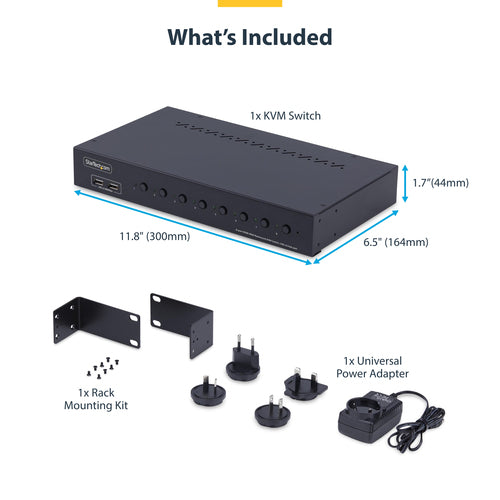

| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 585 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 5 pc(s) |
