AV Extender StarTech.com ST121SHD50 HDMI Over CAT5e/CAT6 165 ft 1920x1080 Wired - ST121SHD50
AV Extender StarTech.com ST121SHD50 HDMI Over CAT5e/CAT6 165 ft 1920x1080 Wired - ST121SHD50
AV professionals requiring long-distance HDMI signal transmission in commercial installations will benefit from the StarTech.com ST121SHD50. This extender supports signal distances up to 165 ft (50m) over CAT5e or CAT6 cabling, making it ideal for conference rooms, classrooms, and large venues.
Delivering 1920 x 1080 pixel resolution, this wired AV transmitter and receiver combination ensures high-quality video without loss. With Power Over Cable (PoC) capability, it simplifies installation by eliminating separate power supplies at the receiver end.
- Maximum distance: 165 ft (50m)
- Resolution: 1920 x 1080 pixels
- Type: AV transmitter & receiver
- Cabling: CAT5e/CAT6
- Power: Power Over Cable (PoC)
- Connection type: Wired
- Color: Black
Built for AV professionals needing reliable HDMI signal transmission over extended distances in commercial environments.
Available stock: 359
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| LED indicators | Power |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Product colour | Black |
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 51 x 80 x 21 mm |
| Receiver weight | 157 g |
| Transmitter dimensions (WxDxH) | 51 x 80 x 21 mm |
| Transmitter weight | 157 g |
| Packaging data | |
| Package width | 157 mm |
| Package depth | 237 mm |
| Package height | 65 mm |
| Package weight | 935 g |
| Packaging content | |
| AC adapter included | Yes |

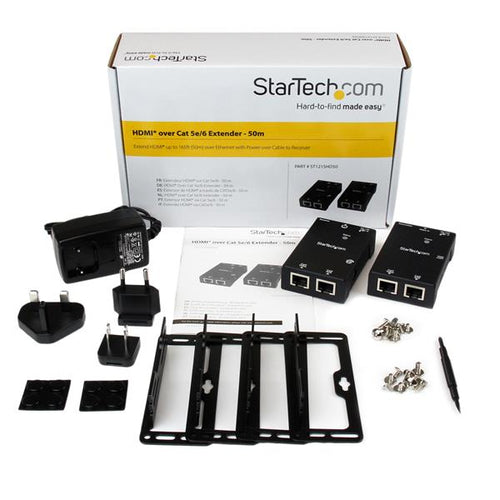

| Cables included | HDMI |
| Manual | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
