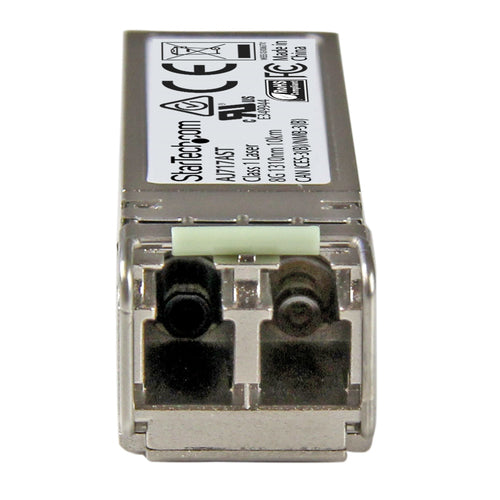

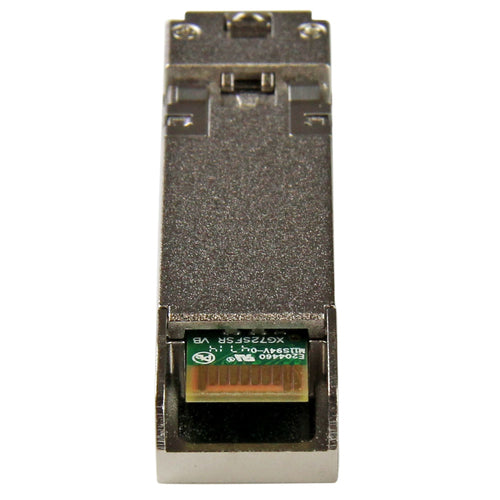

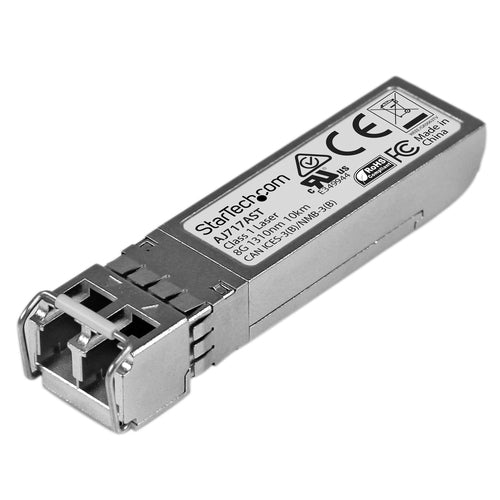

Transceiver Module StarTech.com AJ717AST SFP+ 8GbE 10km LC 1310nm
Transceiver Module StarTech.com AJ717AST SFP+ 8GbE 10km LC 1310nmData centers requiring reliable, high-speed connectivity will benefit from the StarTech.com SFP+ transceiver module. This module ensures seamless integration with various HPE switches, making it an excellent choice for network upgrades or new system setups.
Delivering optimal performance with a speed of 8GbE over distances up to 10 kilometers, this single-mode fiber optic transceiver supports efficient data transmission for mission-critical applications. The included DDM support allows for monitoring, ensuring your network stays responsive and reliable.
- Compatibility: HPE AJ717A
- Speed: 8GFC (8000 Mbit/s)
- Distance: 10km
- Wavelength: 1310nm
- Connection Type: LC
- Form Factor: SFP+
- DDM Support: Yes
Designed for IT teams managing data center infrastructure and network environments, this transceiver is essential for maintaining robust connectivity.
Available stock: 105
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 8000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| Power | |
| Power consumption (typical) | 1.5 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 21 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 118 mm |
| Package depth | 92 mm |
| Package height | 33 mm |
| Package weight | 49 g |
| Logistics data | |
| Master (outer) case width | 354 mm |
| Master (outer) case length | 410 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
