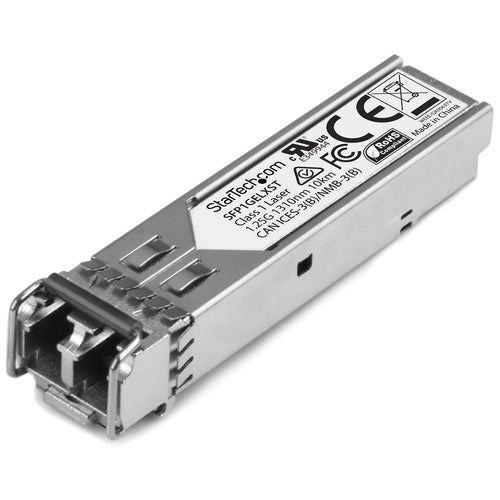

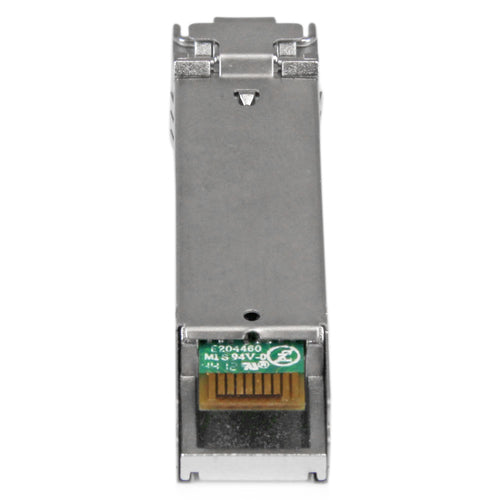

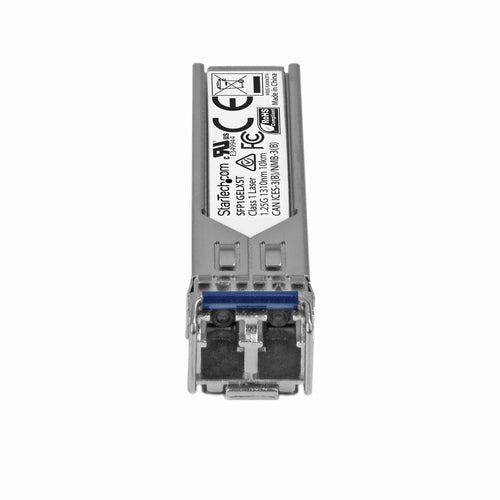

SFP Transceiver Module 1000BASE-LX 1GbE Single Mode Fiber 10km 1310nm
SFP Transceiver Module 1000BASE-LX 1GbE Single Mode Fiber 10km 1310nmUpgrade your network with the StarTech.com SFP Transceiver Module, ideal for connecting to your network at high speeds with minimal downtime.
This compatible SFP transceiver module supports 1000BASE-LX, making it perfect for extending your network over single-mode fiber. With a reach of up to 10 kilometers and a wavelength of 1310nm, you can achieve reliable, high-speed connectivity for your data-intensive applications.
- Model: SFP-1GE-LX Compatible
- Speed: 1GbE
- Type: Single Mode Fiber (SMF)
- Max Distance: 10km
- Wavelength: 1310nm
- Form Factor: SFP
- Connector: LC
Available stock: 68
-
Estimated delivery: Oct 04 - Oct 08
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 19 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 119 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 49 g |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 305 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
