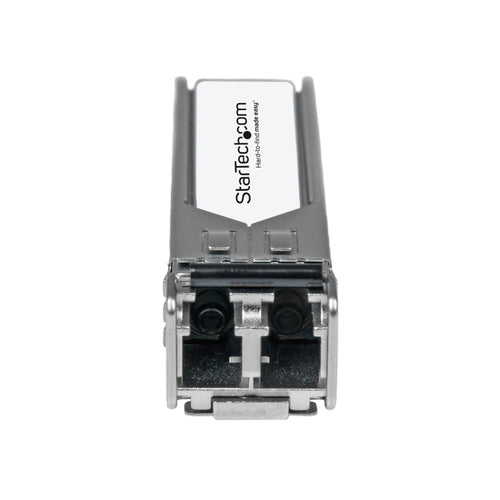

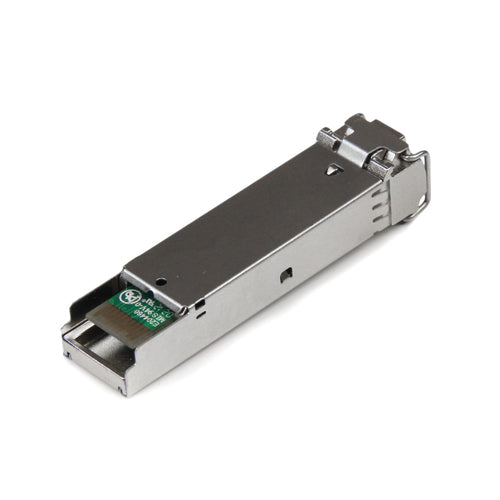

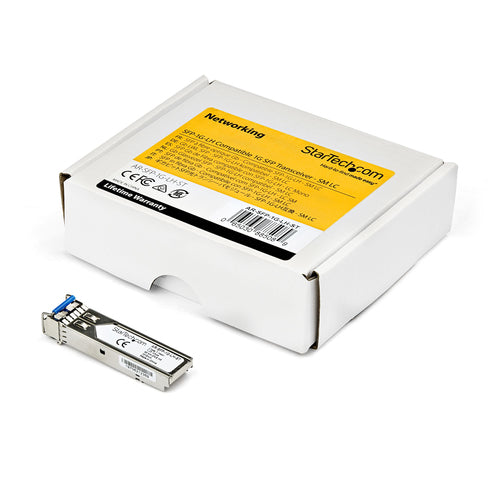

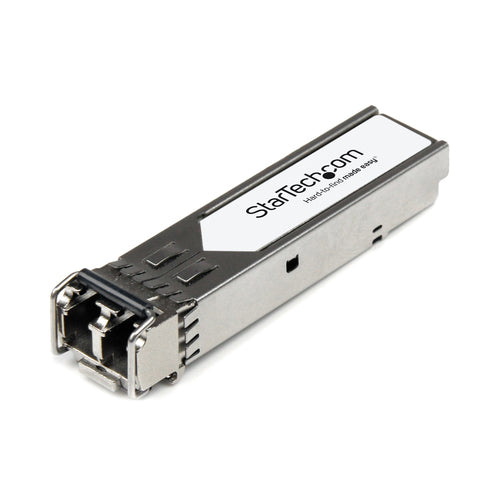

SFP Module 1000BASE-LX 1GbE Single Mode Fiber 10km StarTech.com
SFP Module 1000BASE-LX 1GbE Single Mode Fiber 10km StarTech.com
Enhance your network performance with the StarTech.com SFP Module, designed for stable and reliable connectivity. Ideal for high-speed data transfer needs, this module is perfect for extending your network over long distances.
With its 1000BASE-LX capability, this single-mode fiber optic transceiver ensures a data rate of 1Gbps up to 10 kilometers, making it a great choice for enterprise-level networking solutions.
- Data Rate: 1Gbps
- Distance: Up to 10 km
- Wavelength: 1310nm
- Connector: LC
- Fiber Type: Single Mode (SMF)
- DDM (Digital Diagnostics Monitoring): Yes
Available stock: 25
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Mean time between failures (MTBF) | 634210013 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10052 |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR, REACH |
| Weight & dimensions | |
| Width | 56.6 mm |
| Depth | 13.7 mm |
| Height | 12.5 mm |
| Weight | 18 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
