The 5320 Series is a family of feature-rich edge switches designed for the next-generation digital enterprise. As a universal hardware platform, the 5320 Series end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of
Extreme’s flagship switch operating systems. This makes the 5320 a uniquely flexible platform that can be deployed across a range of edge and wiring-closet environments.

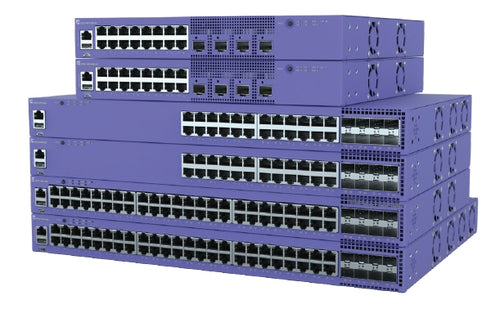

The 5320 Series includes fixed 16, 24, and 48-port 1 Gigabit models that are available in 30W PoE and non-PoE versions. The family also includes 16 port PoE models available with either AC or DC power options.

Universal Hardware Platform
The 5320 Series comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the Switch Engine1 or Fabric Engine2 persona can be enabled on 5320 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 5320 assumes the features/capabilities of the selected OS.

5320 persona activation can be done manually at boot-up, including via the system CLI. Or, it can be automated by pre-provisioning the 5320 persona in ExtremeCloud IQ. When first booted, the 5320 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5320 system – eliminating the need for manual selection.

Ethernet Fabric Services
The 5320 supports a variety of Ethernet Fabric services, including Extreme’s Fabric Connect when running Fabric Engine and Extreme’s IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme’s Fabric Connect and IP Fabric on the 5320 enable the creation of virtualized networks that automate network operations, simplify network provisioning and enhance security, all while reducing the strain on network and IT personnel.

Intelligent Layer 2/3 Services
The 5320 Series provides sophisticated Layer 2 switching as well as advanced Layer 3 routing services. This includes role-based policy, bidirectional Access Control Lists, as well as granular ingress/egress bandwidth control. Layer 3 services include IPv4 and IPv6 dynamic routing, as well as
IP multicast services.

Management
The 5320 can be managed by ExtremeCloud IQ and ExtremeCloud IQ—Site Engine for comprehensive unified management with a consolidated view of users, devices and applications across wired and wireless networks. (NOTE: Each 5320 unit also includes a 1-year free ExtremeCloudIQ Pilot subscription.) Zero-touch provisioning from ExtremeCloud IQ lets one quickly bring new 5320 switches online as well as enable the selection of the operating system (OS) persona. Alternatively, 5320 on-box management can be done manually via a web-based GUI or generic CLI.

Power Over Ethernet
The 5320 Series includes Power over Ethernet (PoE) models supporting standards-based 30W IEEE 802.3at PoE capabilities. This enables the 5320 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5320 PoE models also support perpetual and fast PoE for even more efficient and reliable powered edge device operation.

High-Performance Stacking
Two of the 5320’s built-in SFP+ uplink ports can be used for high-speed stacking when running Switch Engine. Up to eight systems can be stacked using qualified 10Gb direct attach cables and optical transceivers. (Note: Stacking is not supported when running Fabric Engine).

1Gb Uplinks Upgradeable to 10Gb
All 5320 Series units include integrated SFP+ capable uplinks that support 1Gb SFP by default, but which can be upgraded to 10Gb via software. 24 and 48-port 5320 models come with 8 x 1Gb SFP uplinks; 16-port models offer 4 x 1Gb SFP uplinks. 1Gb SFP uplinks are upgradeable to 10Gb SFP+ through an optional software license. (Note: Two of the 5320 uplink ports are available for Switch Engine stacking and when used in this manner support 10Gb by default.)

Silent Operation
Silent mode operation at temperatures up to 35⁰C is supported on 5320 16-port AC and DC-powered models. This makes these models ideal for classrooms, hospitality suites, retail sites or other noise sensitive environments, especially outside of the wiring closet environment.
