Software and management:
Remote management: Digi Remote Manager®, SNMP v3 (user installed/managed)
Local management: Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
Management / troubleshooting tools: Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
Memory: 512 MB RAM, 8 GB Flash

Security:
Authentication: TACACS+, LDAP, Enterprise RADIUS

Ethernet:

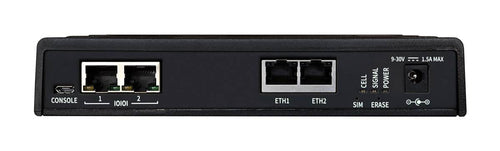

​Ports: (2) RJ-45; 10/100/1000 Mbps (auto-sensing)

Serial:
​​Ports: (2) RJ45-10; RS-232 DTE/RS-422/RS-485 capable, software selectable
RS-232 / EIA-232 Serial Modes: Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
RS-422 / EIA-422 Serial Modes: TX+/-, RX+/-, software termination, pre-delay/post-delay
RS-485 / EIA-485 Serial Modes: Data+/Data-, software termination, pre-delay/post-delay

Physical:
​Dimensions (L x W x H): 19.2 cm x 13.4 cm x 3.5 cm (7.56 in x 5.28 in x 1.38 in)
Package dimensions: 35.5 cm x 20.4 cm x 6.7 cm (13.98 in x 8.03 in x 2.64 in)
Package weight: 1.3 kg (2.87 lb)
Status LEDs: Each Ethernet and serial port has two status LEDs; power, signal, Ethernet, serial

Power requirements:
​Power input: Locking barrel: 9 to 30 VDC, locking 2.1 mm center barrel connector
Power consumption: 9 V at 1.5 A max, 4.5 W typical without Digi CORE modem

Environmental:
​Operating temperature:
Standard operating temperature of Connect EZ device: 0 °C to 40 °C (32 °F to 104 °F)
Relative humidity: 5% to 95% (non-condensing)

Approvals:
​Safety: IEC62368-1, CB, EN62311
Environmental: ROH53
Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32

Product warranty: 5-year for base Connect EZ device
Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included
Accessories: Includes power supply and DIN rail clip (DIN rail bracket available separately — 76002093)

What's in the box

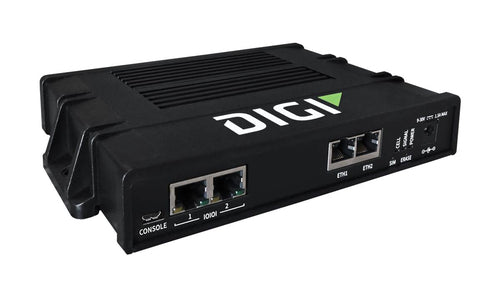

Digi Connect EZ 2 — serial server, 2-port, with accessories
Power supply — 12 V, 3 A (24000136)
DIN rail clip (76002095)
