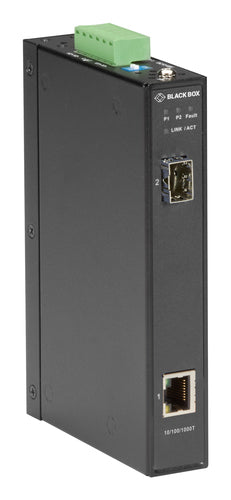

Black Box LGC280 network media converter
Black Box LGC280 network media converter
Available stock: 2
-
Estimated delivery: Oct 14 - Oct 18
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 100Base-TX, 10Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Ethernet interface type | Gigabit Ethernet |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1480000 pps |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Cable types supported | Cat5e |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| International Protection (IP) code | IP30 |

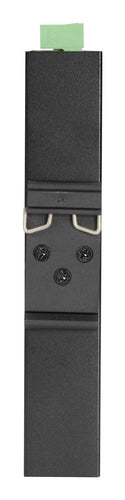

| DIN rail mounting | Yes |
| Power protection features | Overload, Over current, Reverse polarity |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |

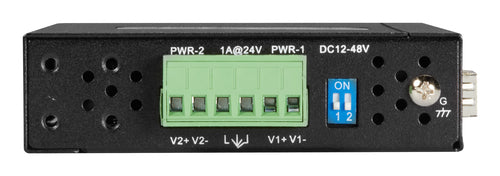

| Input voltage | 12 - 48 V |
| Power consumption (typical) | 3.5 W |
| Weight & dimensions | |
| Width | 26.1 mm |
| Depth | 94.9 mm |
| Height | 144.3 mm |
| Weight | 377 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 96 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC) |
| Logistics data | |
| Country of origin | Taiwan |
