Wireless Access Point TP-Link Omada EAP225-Outdoor 2.4/5 GHz 1200 Mbit/s 802.1x RADIUS - EAP225-OUTDOOR
Wireless Access Point TP-Link Omada EAP225-Outdoor 2.4/5 GHz 1200 Mbit/s 802.1x RADIUS - EAP225-OUTDOOR
In high-density outdoor environments requiring secure wireless access, the TP-Link Omada EAP225-Outdoor stands out as a robust solution for multi-site wireless deployments. Ideal for businesses seeking reliable connectivity in expansive areas, this access point ensures seamless network access.
With dual-band capabilities providing a combined throughput of 1200 Mbit/s and support for 802.1x RADIUS authentication, this device offers both performance and security. Its versatile deployment options make it suitable for a variety of outdoor settings, ensuring consistent connectivity for users.
- Frequency Bands: 2.4 GHz and 5 GHz
- Data Rate: 1200 Mbit/s
- Authentication: 802.1x RADIUS
- Ethernet Ports: 10/100/1000 Mbit/s
- Deployment Type: Outdoor
Designed for businesses deploying extensive outdoor Wi-Fi solutions, this access point meets the connectivity needs of IT administrators and networking professionals in a variety of environments.
Available stock: 38
-
Estimated delivery: Oct 03 - Oct 07
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN mapping |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security | |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Output voltage | 24 V |
| Power consumption (typical) | 10.5 W |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| Antenna | |
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 46 mm |
| Height | 27 mm |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 270 mm |
| Package height | 100 mm |
| Package weight | 640 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |

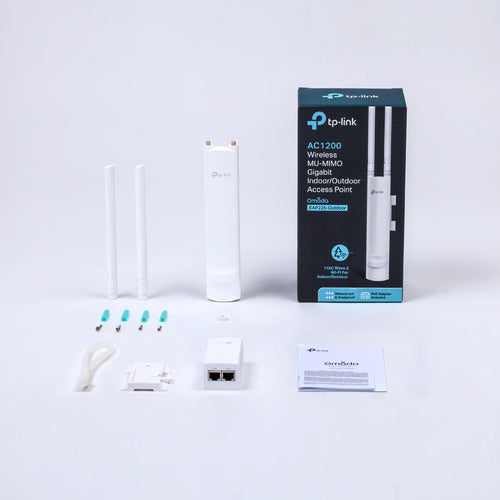

| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
