KVM Switch StarTech.com SV431DPU3A2 4-Port DisplayPort USB 3.0 4K 30Hz Rack Mount - SV431DPU3A2
KVM Switch StarTech.com SV431DPU3A2 4-Port DisplayPort USB 3.0 4K 30Hz Rack Mount - SV431DPU3A2

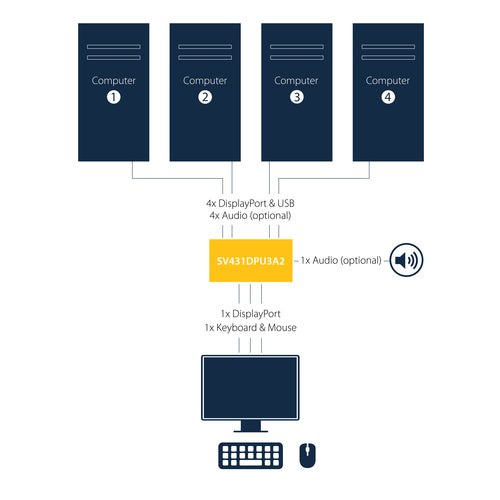

IT environments requiring seamless control over multiple systems will benefit from the StarTech.com SV431DPU3A2 KVM Switch, specifically designed for use in rack-mounted server setups. This solution is ideal for technical professionals who need to manage extensive hardware efficiently.
With support for 4K resolution at 30Hz, this switch enables high-definition displays across four connected systems simultaneously, ensuring smooth transitions and optimal performance. USB 3.0 connectivity guarantees fast data transfer, while its compact design fits perfectly in server racks, making it an essential tool for business-critical operations.
- Ports: 4 x DisplayPort
- Connectivity: USB 3.0
- Resolution: 4K at 30Hz (3840 x 2160 pixels)
- Power Consumption: 18 W
- Form Factor: Rack mountable
- Color: Black
Built for IT admins and tech professionals managing multiple servers in data centers or enterprise environments.
Available stock: 8
-
Estimated delivery: Oct 02 - Oct 06
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

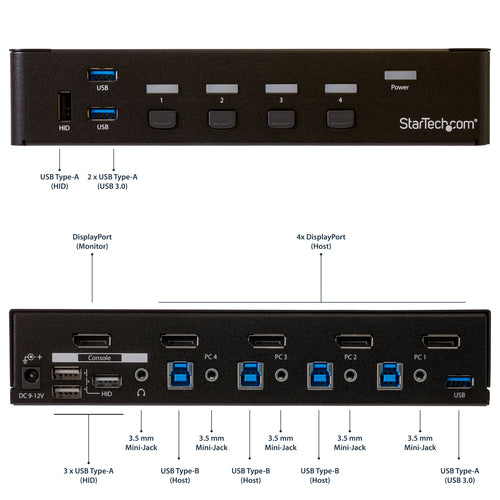

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Maximum operating distance | 10 m |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Link, Power |
| Hot keys | Yes |
| Certification | CE, FCC, UL, PSE |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100-240 V |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |

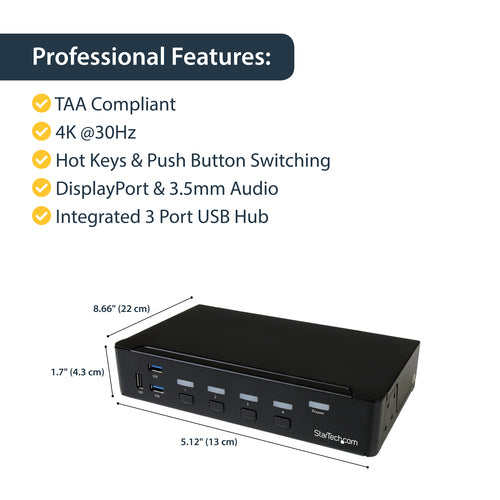

| Width | 130 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 1.06 kg |
| Packaging data | |
| Package width | 244 mm |
| Package depth | 297 mm |
| Package height | 85 mm |
| Package weight | 1.61 kg |

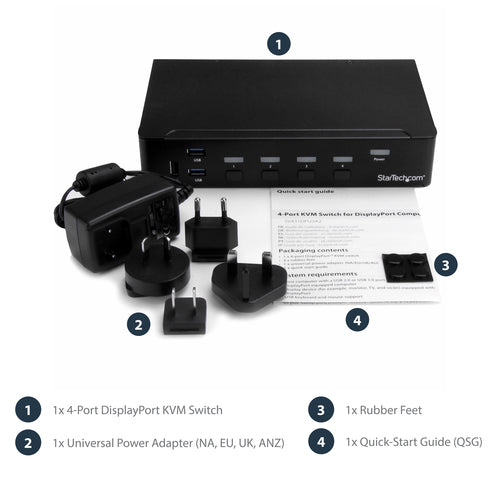

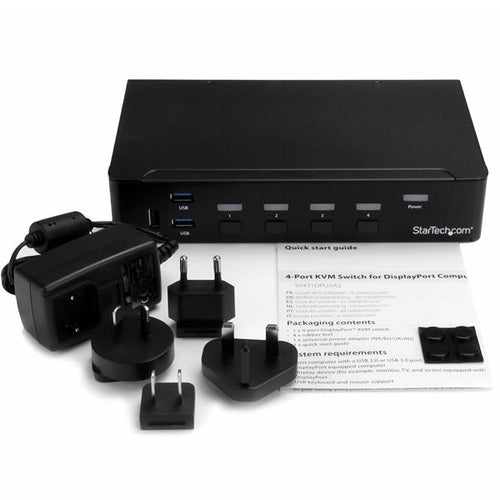

| Packaging content | |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Other features | |
| Audio support | Yes |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
